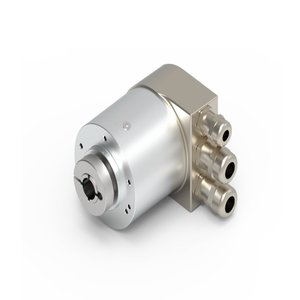

EN580C.ML-BN12.GH2PB.21160.H: 11263577 - Baumer 16 bit MT Multiturn
Technical Specifications of Baumer 16 bit MT Multiturn Encoder EN580C.ML-BN12.GH2PB.21160.H 11263577:
| Voltage supply | 8...30 VDC |
| Interface | Profibus-DPV0 |
| Sensing method | Optical |
| Connection | Cable gland |
Baumer 16 bit MT Multiturn Encoder EN580C.ML-BN12.GH2PB.21160.H 11263577 Technical Specifications:
| Specification | Value |
|---|---|
| Voltage supply | 8...30 VDC |
| Reverse polarity protection | Yes |
| Consumption w/o load | ≤100 mA (24 VDC) |
| Interface | Profibus-DPV0 |
| Function | Multiturn |
| Absolute accuracy | ±0.01 ° |
| Sensing method | Optical |
| Status indicator | DUO-LED integrated in bus cover |
| Size (flange) | ø58 mm |
| Shaft type | ø12 mm (blind hollow shaft) |
| Protection EN 60529 | IP 54 (without shaft seal) |
| Operating speed | ≤6000 rpm (+25 °C) |
| Starting acceleration | ≤1000 U/s² |
| Starting torque | ≤0.02 Nm (+25 °C, IP 54) |
| Material | Housing: aluminium, Flange: aluminium, Bus cover: zinc die-cast, Shaft: stainless steel |
| Operating temperature | -25...+85 °C (see general information) |
| Relative humidity | 95 % non-condensing |
| Resistance | EN 60068-2-6, Vibration ±0.75 mm - 10-58 Hz, 10 g - 58-2000 Hz, EN 60068-2-27, Shock 200 g, 3 ms |
| Weight approx. | 550 g |
| Connection | Cable gland |
Please speak to our Technical Engineer for Baumer 16 bit MT Multiturn Encoder EN580C.ML-BN12.GH2PB.21160.H part no: 11263577 at attractive prices. Technical Specs Summary of EN580C.ML-BN12.GH2PB.21160.H, 11263577 includes voltage supply of 8...30 VDC. These encoders feature the Profibus-DPV0 interface, Multiturn functionality, and Optical sensing methods for accurate performance. The flange size is ø58 mm, making them suitable for various industrial applications. The operating speed reaches up to ≤6000 rpm (+25 °C) operations, ensuring reliable functionality in demanding environments. The Housing: aluminium, Flange: aluminium, Bus cover: zinc die-cast, Shaft: stainless steel, provides robust protection. The connection is facilitated by Cable gland, ensuring secure and efficient data transmission. Match Your Needs with a Quote for your requirement of Baumer 16 bit MT Multiturn Encoder. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
