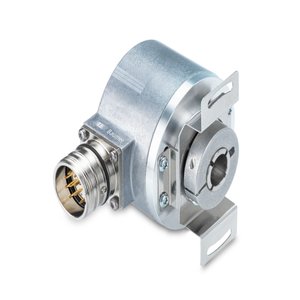

optoTurn EN580E.ML-TT14.GB11G.13120.H: 11246065 - Baumer ø58 mm Flange Size
Technical Specifications of Baumer ø58 mm Flange Size optoTurn EN580E.ML-TT14.GB11G.13120.H 11246065:
Spec | Value |
---|---|
Voltage supply | 8...30 VDC |
Interface | SSI |
Sensing method | Optical |
Connection | Flange connector M23, 12-pin, CCW |
Baumer ø58 mm Flange Size optoTurn EN580E.ML-TT14.GB11G.13120.H 11246065 Technical Specifications:
Specification | Value |
---|---|
Voltage supply | 8...30 VDC |
Reverse polarity protection | Yes |
Consumption w/o load | ≤80 mA (24 VDC) |
Interface | SSI |
Function | Multiturn |
Total resolution | |
Absolute accuracy | ±0.03 ° |
Sensing method | Optical |
Status indicator | |
Size (flange) | ø58 mm |
Shaft type | ø14 mm (through hollow shaft) |
Protection EN 60529 | IP 54 (flange side), IP 65 (housing side) |
Operating speed | ≤6000 rpm (+25 °C) |
Starting acceleration | |
Starting torque | ≤0.04 Nm |
Rotor moment of inertia | |
Material | Housing: aluminium, Shaft: stainless steel |
Operating temperature | -25...+85 °C (see general information) |
Relative humidity | 95 % non-condensing |
Resistance | IEC 60068-2-6, Vibration ±0.75 mm - 10-58 Hz, 10 g - 58-2000 Hz, EN 60068-2-27, Shock 100 g, 11 ms |
Weight approx. | 400 g |
Connection | Flange connector M23, 12-pin, CCW |
Flange | |
Admitted shaft load | |
Consumption typ. | |
Initializing time | |
Data currency | |
Profile conformity | |
Code sequence | CW: ascending values with clockwise sense of rotation (looking at flange) |
Output stages | SSI data: Linedriver RS422 |
Incremental output | |
Output signals | SSI data |
Output frequency | |
Moment of inertia | |
Working distance |
Reach Us by Email for Baumer ø58 mm Flange Size optoTurn EN580E.ML-TT14.GB11G.13120.H part no: 11246065 at Discounted Rates. Key Technical Features of optoTurn EN580E.ML-TT14.GB11G.13120.H, 11246065 are voltage supply of 8...30 VDC. These encoders feature the SSI interface, Multiturn functionality, and Optical sensing methods for accurate performance. The flange size is ø58 mm, making them suitable for various industrial applications. The operating speed reaches up to ≤6000 rpm (+25 °C) operations, ensuring reliable functionality in demanding environments. The Housing: aluminium, Shaft: stainless steel, provides robust protection. The connection is facilitated by Flange connector M23, 12-pin, CCW, ensuring secure and efficient data transmission. Navigate Your Needs with a Quote for your requirement of Baumer ø58 mm Flange Size. Our pricing and support are unrivaled, especially when compared to other Competitors.
