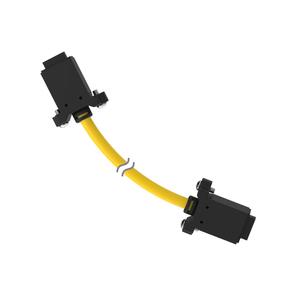

Home Brands Banner Cordsets DELS-113E Banner DELS-113E Cordset The Banner DELS-113E Cordset offers a Double Ended , LS-Custom connection, 60 V ac/75 V dc rating, and No Shield . Manufactured by Banner under the Banner Cordset category.
Brand Banner Product Type Cordsets Model Number DELS-113E
Banner DELS-113E Cordset – Technical Specifications Specification Value IP Rating IP67 Cable Jacket Color Yellow Cable Jacket Material PVC Coupling Nut Material Custom Connector 1 Gender Female Connector 1 Orientation Straight Cordset Length (m) 1 Outside Cable Diameter (mm) 6 Connector 1 Number of Contacts 12 Number of Ends Double Ended Connector 2 Type LS-Custom Connector 1 Type LS-Custom Voltage Rating (V) 60 V ac/75 V dc Minimum Temp. (Celsius) -40 Trunk Length (m) No Trunk Shield/No Shield No Shield Overmold Material and Color PVC Black Current Rating (A) 2 Maximum Temp. (Celsius) 70 Cordset Length Range (m) Less than 2.00 Connector 2 Number of Contacts 12 Connector 2 Gender Female Connector 2 Orientation Straight
