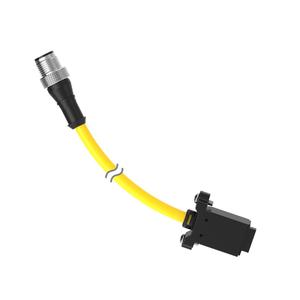

Home Brands Banner Cordsets DELSE-81D Banner DELSE-81D Cordset The Banner DELSE-81D Cordset offers a Double Ended , LS-Custom connection, 60 V ac/75 V dc rating, and No Shield . Manufactured by Banner under the Banner Cordset category.
Brand Banner Product Type Cordsets Model Number DELSE-81D
Banner DELSE-81D Cordset – Technical Specifications Specification Value IP Rating IP67 Cable Jacket Color Yellow Cable Jacket Material PVC Coupling Nut Material Nickel Plated Brass Connector 1 Gender Female Connector 1 Orientation Straight Cordset Length (m) 0.3 Outside Cable Diameter (mm) 6 Connector 1 Number of Contacts 12 Number of Ends Double Ended Connector 2 Type M12 Connector 1 Type LS-Custom Voltage Rating (V) 60 V ac/75 V dc Minimum Temp. (Celsius) -40 Trunk Length (m) No Trunk Shield/No Shield No Shield Overmold Material and Color PVC Black Current Rating (A) 2 Maximum Temp. (Celsius) 70 Cordset Length Range (m) Less than 2.00 Connector 2 Number of Contacts 8 Connector 2 Gender Male Connector 2 Orientation Straight Connector 2 Key Code A
