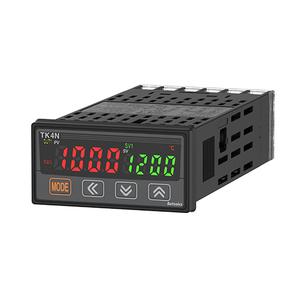

Autonics TK4N-14RN Temperature Controller
The Autonics TK4N-14RN Temperature Controller offers ON/OFF, P, PI, PD, PID control method, 100-240VAC~ 50/60Hz power supply, 4-digit 7-segment LED, 50ms. Manufactured by Autonics under the Autonics Temperature Controller category, this model belongs to the TK Series.
| Brand | Autonics |
| Product Type | Temperature Controller |
| Model Number | TK4N-14RN |
Autonics TK4N-14RN Temperature Controller β Technical Specifications
| Specification | Value |
|---|---|
| Power supply | 100-240VAC~ 50/60Hz |
| Sampling cycle | 50ms |
| Display method | 4-digit 7-segment LED |
| Control method | ON/OFF, P, PI, PD, PID |
| Proportional band | 0.1 to 999.9β/β(0.1 to 999.9%) |
| Integral time | 0 to 9999 sec |
| Derivative time | 0 to 9999 sec |
| Control period | Relay output, SSR drive output: 0.1 to 120.0 sec Current output or SSR drive output selectable: 1.0 to 120.0 sec |
| Manual reset | 0.0 to 100.0% |
| Environment_Ambient temperature | -10 to 50β, storage: -20 to 60β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Insulation type | Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 2kV) |
| Option input | CT |
| Protection structure | IP65(front panel) |
| Display accuracy_CT input | Β±5% F.S. Β±1-digit |
| Input specification | Thermocouple: K(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel IIRTD: DPt100Ξ©, DPt50Ξ©, JPt100Ξ©, Cu100Ξ©, Cu50Ξ©, Nikel 120Ξ©Analog: 0-100mV, 0-5V, 1-5V, 0-10V0-20mA, 4-20mA |
| Option output | Alarm 1 |
| Display accuracy_RTD | β’At room temperature(23βΒ±5β):(PV Β±0.3% or Β±1β, select the higher one) Β±1-digitβ’Out of room temperature:(PV Β±0.5% or Β±2β, select the higher one) Β±1-digit |
| Display accuracy_Thermocouple | β’At room temperature(23βΒ±5β):(PV Β±0.3% or Β±1β, select the higher one) Β±1-digitβ’Out of room temperature:(PV Β±0.5% or Β±2β, select the higher one) Β±1-digit |
| Hysteresis(adjustable sensitivity) | RTD/Thermocouples: 1 to 100β/β(0.1 to 100.0β/β) variable Analog: 1 to 100-digit |
| Control output 1 | Relay(250VAC~ 3A) |
| Display accuracy_Analog | β’At room temperature(23βΒ±5β): Β±0.3% F.S. Β±1-digitβ’Out of range of room temperature: Β±0.5β% F.S. Β±1-digit |
| Control output 2 | - |
| Weight | Approx. 140g(approx. 70g) |
The Autonics presents the TK4N-14RN High Performance PID Temp Controller, tailored for critical thermal applications in packaging machines, ovens, and plastic molding lines. Designed for versatility, the controller supports thermocouple, RTD, and analog input signals, ensuring compatibility with a wide variety of sensors. It operates on a stable 100β240VAC~ 50/60Hz power supply and delivers fast, accurate performance with its 50ms sampling cycle. Front-panel operation is intuitive via a bright 4-digit 7-segment LED, and an IP65-rated enclosure enhances durability in dusty or humid shop floor conditions.
The TK4N-14RN is trusted by engineers and panel builders who prioritize process stability and repeatability. In packaging and sealing machines, this controller helps maintain consistent heat levels for reliable sealing performance. In pharmaceutical ovens or food processing systems, it ensures temperature uniformity for batch quality and safety. The adjustable PID parameters provide fine-tuned response for each use case, whether it's a slow-heating dryer or a fast-cycling heater element.
Thanks to its support for analog inputs (0β10V, 4β20mA) and relay output (250VAC~ 3A), it fits seamlessly into PLC-controlled systems and legacy panels. With a lightweight 140g build and reinforced insulation for electrical protection, installation is quick and safe for maintenance engineers. Junior technicians find the interface user-friendly, while senior engineers appreciate the flexible control modes (ON/OFF, P, PI, PD, PID) for application-specific tuning.
Whether you're replacing outdated controllers or building new process panels, the Autonics TK4N-14RN offers precise control, high reliability, and long-term service value. For complete specifications and integration support, visit the official Autonics Temperature Controller page on IndMALL.
