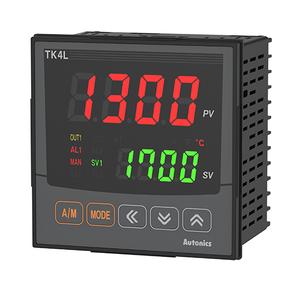

Autonics TK4L-B4CN Temperature Controller
The Autonics TK4L-B4CN Temperature Controller offers ON/OFF, P, PI, PD, PID control method, 100-240VAC~ 50/60Hz power supply, 4-digit 7-segment LED, 50ms. Manufactured by Autonics under the Autonics Temperature Controller category, this model belongs to the TK Series.
| Brand | Autonics |
| Product Type | Temperature Controller |
| Model Number | TK4L-B4CN |
Autonics TK4L-B4CN Temperature Controller – Technical Specifications
| Specification | Value |
|---|---|
| Power supply | 100-240VAC~ 50/60Hz |
| Sampling cycle | 50ms |
| Display method | 4-digit 7-segment LED |
| Control method | ON/OFF, P, PI, PD, PID |
| Proportional band | 0.1 to 999.9℃/℉(0.1 to 999.9%) |
| Integral time | 0 to 9999 sec |
| Derivative time | 0 to 9999 sec |
| Control period | Relay output, SSR drive output: 0.1 to 120.0 sec Current output or SSR drive output selectable: 1.0 to 120.0 sec |
| Manual reset | 0.0 to 100.0% |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Insulation type | Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 2kV) |
| Option input | CT, Digital(DI-1/2) |
| Protection structure | IP65(front panel) |
| Display accuracy_CT input | ±5% F.S. ±1-digit |
| Input specification | Thermocouple: K(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel IIRTD: DPt100Ω, DPt50Ω, JPt100Ω, Cu100Ω, Cu50Ω, Nikel 120ΩAnalog: 0-100mV, 0-5V, 1-5V, 0-10V0-20mA, 4-20mA |
| Option output | Alarm 1/2, RS485 comm. |
| Display accuracy_RTD | •At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit•Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit |
| Display accuracy_Thermocouple | •At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit•Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit |
| Hysteresis(adjustable sensitivity) | RTD/Thermocouples: 1 to 100℃/℉(0.1 to 100.0℃/℉) variable Analog: 1 to 100-digit |
| Control output 1 | Current(DC0/4-20mA) or SSR drive(11VDC @(=)) [ON/OFF] |
| Display accuracy_Analog | •At room temperature(23℃±5℃): ±0.3% F.S. ±1-digit•Out of range of room temperature: ±0.5℃% F.S. ±1-digit |
| Control output 2 | - |
| Weight | Approx. 294g(approx. 198g) |
The Autonics TK4L-B4CN Temperature Controller runs on a 100–240VAC supply and delivers rapid 50ms sampling for accurate feedback. Supporting ON/OFF, P, PI, PD, and PID control, this High Performance PID Temp Controller adapts to diverse thermal processes. With compatibility for thermocouples, RTDs, and analog inputs, plus SSR drive and current outputs, engineers gain flexibility in both legacy and modern systems. Its reinforced insulation with 2kV dielectric strength, IP65 front panel protection, and ±0.3% accuracy ensure reliability in demanding environments.
Engineers rely on the TK4L-B4CN AUTONICS for real-world applications such as injection molding machines, packaging equipment, furnaces, and food-processing ovens. Compact enough for DIN panel integration yet powerful for multi-zone regulation, this Autonics TK4L-B4CN Temperature Controller supports stable performance across industries like pharmaceuticals, plastics, electronics, and chemicals. Its user-friendly LED display and adjustable parameters simplify setup while maintaining process stability under variable conditions.
Trusted worldwide, the Autonics TK4L-B4CN combines durability, efficiency, and precision. Wholesalers, dealers, and distributors recommend it for industries needing long-term performance with minimal downtime. Technical support resources such as the Autonics TK4L-B4CN Manual and Autonics TK Datasheet further strengthen its credibility. For full specifications and expert guidance, visit the official Autonics Temperature Controller page today.
