Autonics Temperature Controllers

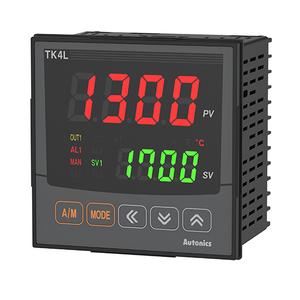

TK4L-R4RR
Autonics TK4L-R4RR Technical Specification:
Size | DIN W48xH48 mm |
Display method | 4-digit 7-segment LED |
Control method | ON/OFF control, P, PI, PD, PID control |
Input specification | Thermocouple: K(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel II RTD: DPt100Ω, DPt50Ω, JPt100Ω, Cu100Ω, Cu50Ω, Nikel 120Ω Analog: 0-100mV, 0-5V, 1-5V, 0-10V, 0-20mA, 4-20mA |
Sampling cycle | 50ms |
Control output 1 | Relay(250VAC~ 3A) |
Control output 2 | Relay(250VAC~ 3A) |
Option input | CT, Digital(DI-1/2) |
Option output | Alarm 1, Transmission(DC4-20mA) |
Power supply | 100-240VAC~ 50/60Hz |
Protection structure | IP65(front panel) |
Display accuracy RTD | •At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit •Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit |
Display accuracy Thermocouple | •At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit •Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit |
Display accuracy Analog | •At room temperature(23℃±5℃): ±0.3% F.S. ±1-digit •Out of range of room temperature: ±0.5℃% F.S. ±1-digit |
Display accuracy CT input | ±5% F.S. ±1-digit |
Hysteresis(adjustable sensitivity) | RTD/Thermocouples: 1 to 100℃/℉(0.1 to 100.0℃/℉) variable Analog: 1 to 100-digit |
Proportional band | 0.1 to 999.9℃/℉(0.1 to 999.9%) |
Integral time | 0 to 9999 sec |
Derivative time | 0 to 9999 sec |
Control period | Relay output, SSR drive output: 0.1 to 120.0 sec Current output or SSR drive output selectable: 1.0 to 120.0 sec |
Manual reset | 0.0 to 100.0% |
Environment Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
Environment Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
Insulation type | Double insulation or reinforced insulation(mark: , the dielectric strength between the measuring input part and the power part: 2kV) |
Weight | Approx. 150g(approx. 105g) |
Buy Autonics TK4L-R4RR Temperature Controllers at wholesale rates. If you are looking for or if you are searching for Autonics PID Controllers dealers, finally you have reached the correct place. From IndMALL Automation you can get the best Autonics Controllers distributors in India. We are supplying Autonics TK4LR4RR in Chennai, Bangalore, Hyderabad, Delhi, Mumbai, Pune, Vijayawada, Kolkata, Coimbatore, Kerala, Jaipur, Vapi, and Ahmedabad.
You can purchase Autonics Temperature Controllers TK4L R4RR from IndMALL Automation. We can assure you that the Autonics TK4L R4RR PID Controller in terms of both durability and performance it’s the best choice. If you are bothered about the Autonics prices, you can be totally sure to get the best rates as Challaturu Engg & Automation Pvt Ltd. We bring you the original & Quality Autonics TK4L R4RR. Procure Autonics Controller Now and available the best offers on your purchase.
