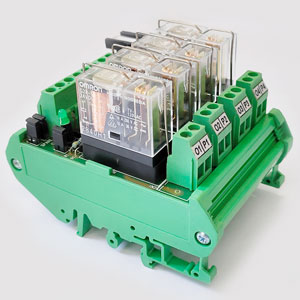

4 Channel 5V Relay Module - AE-04-005D-1-B-C (G2R)
The 4 Channel 5V Relay Module (AE-04-005D-1-B-C) is designed for reliable switching in automation and control applications using a stable 5VDC supply. This compact 5V relay module allows multiple devices to be controlled through a single board, making it ideal for embedded systems, Arduino projects, and industrial interfaces. Built with SPDT 5V relay configuration, it supports efficient signal switching while maintaining electrical isolation between control and load circuits. Commonly used as a 5 volt relay board or relay 4 channel solution, this module fits applications that require simple, safe, and consistent relay control across multiple outputs.
| Brand | Agility |
| Product Type | Relay Board |
| Product | AE-04-005D-1-B-C (G2R) |
Agility AE-04-005D-1-B-C (G2R) 4 Channel 5V Relay Module Technical Specifications:
| Specification | Value |
|---|---|
| Board Manufactures | Agility |
| Channels | 4 |
| Coil Voltage | 5VDC |
| Switching Current | 10A at 30VDC/250VAC |
| Contact Type 1C/O SPDT | 1C/O SPDT |
| Relay Make | OMRON G2R Series |
| Relay Actuation | LED Indication |
| Relay Coil Protection | Freewheeling Diode |
| Mounting | Universal DIN Rail |
| Input indication | 3 mm green LED for input status |
| Power consumption | Approx. 530mW |
| Must operate voltage | 80% max. of rated voltage |
| Must release voltage | 30% max. of rated voltage |
| Contact material | Ag-alloy (Cd free) |
| Maximum switching voltage | 380V AC, 125V DC |
| Contact resistance | 30mOhm max. |
| Operate time | 15 ms max |
| Release time | DC: 5 ms max. & AC: 10 ms max |
| Insulation resistance | 1000 M Ohm min. |
| Maximum mechanical operating frequency | 18000 operation/hour |
| Maximum electrical operating frequency | 1800 operation/hour (under rated load) |
| Maximum voltage | 140% at 23Β°C |
| Ambient operating temperature | 0Β°C to 50Β°C |
| Housing material | PVC/V0 Grade, Phoenix Contact or equivalent |
| Housing color | Green |
| Conformal coating | Insulate, protect, and seal electronic parts, available on request |
| RoHS compliant | All the components used including PCBs are RoHS approved |
