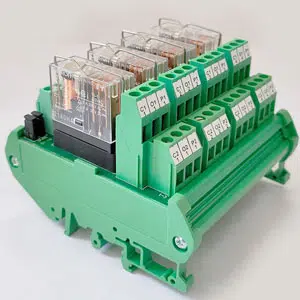

2 Channel 24V Relay Module - AE-02-024D-2-B-C (G2R)
The 2 Channel 24V Relay Module AE-02-024D-2-B-C (G2R) is a compact and reliable solution for switching and controlling electrical loads in industrial and automation systems. Designed to operate as a 24V relay module, it supports stable DC control with efficient switching performance. This unit is commonly used as a 24 volt relay module in control panels, where consistent signal handling and safe load switching are required. With support for 24V DC relay operation, it fits applications involving sensors, PLC outputs, and automation circuits that demand reliable relay switching in compact installations.
| Brand | Agility |
| Product Type | Relay Board |
| Product | AE-02-024D-2-B-C (G2R) |
Agility AE-02-024D-2-B-C (G2R) 2 Channel 24V Relay Module Technical Specifications:
| Specification | Value |
|---|---|
| Board Manufactures | Agility |
| Channels | 2 |
| Coil Voltage | 24VDC |
| Switching Current | 5A at 30VDC/250VAC |
| Contact Type 1C/O SPDT | 2C/O DPDT |
| Relay Make | OMRON G2R Series |
| Relay Actuation | LED Indication |
| Relay Coil Protection | Freewheeling Diode |
| Mounting | Universal DIN Rail |
| Input indication | 3 mm green LED for input status |
| Coil resistance | 1100Ohms |
| Rated coil current | 21.8mA |
| Power consumption | Approx. 530mW |
| Must operate voltage | 80% max. of rated voltage |
| Must release voltage | 30% max. of rated voltage |
| Contact material | Ag-alloy (Cd free) |
| Maximum switching voltage | 380V AC, 125V DC |
| Contact resistance | 50mOhm max. |
| Operate time | 15 ms max. |
| Release time | DC: 5 ms max. & AC: 10 ms max. |
| Insulation resistance | 1000 M Ohm min |
| Maximum mechanical operating frequency | 18000 operation/hour |
| Maximum electrical operating frequency | 1800 operation/hour (under rated load) |
| Maximum voltage | 140% at 23Β°C |
| Ambient operating temperature | 0Β°C to 50Β°C |
| Housing material | PVC/V0 Grade, Phoenix Contact or equivalent |
| Housing color | Green |
| Conformal coating | Insulate, protect, and seal electronic parts, available on request |
| Terminals | PCB Terminals Screw |
| RoHS compliant | All the components used including PCBs are RoHS approved |
The AE-02-024D-2-B-C (G2R) relay module is designed for stable switching in industrial control environments. It functions as a dependable 24 volt relay switch, enabling precise control of electrical loads in automation panels. Engineers working with a 24 relay module configuration typically use this unit to interface between control signals and output devices such as motors, lights, and actuators.
In practical use, this module performs as a reliable 24V DC relay, maintaining consistent switching under continuous operation. It aligns with applications that require a 24 volt DC relay with base or a 24V relay with base for easy installation and secure wiring. Its compact structure supports clean panel layouts while ensuring stable relay performance across different industrial setups.
From a selection perspective, the AE-02-024D-2-B-C (G2R) is suitable for systems that require a relay 24 volt DC or 24V relay module with consistent operation. Buyers evaluating a 24 volt relay or 24V DC relay solution typically consider this model for its durability, switching reliability, and compatibility with automation systems. This clear relationship between module type, voltage rating, and application makes it a practical choice for industrial relay control.
