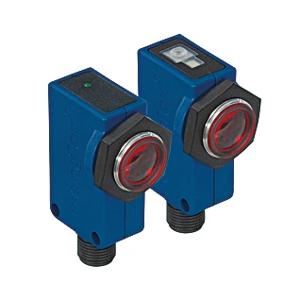

Home Wenglor Photoelectric Sensors Through-Beam Sensors OEWK803A0002 Wenglor OEWK803A0002 Photoelectric Sensor The Wenglor OEWK803A0002 Photoelectric Sensor offers 8,000 mm range, Receiver sensor type, 10 ... 30 V DC supply voltage, IP67 degree of protection. Manufactured by Wenglor under the Wenglor Photoelectric Sensor category, this model belongs to the Wenglor Through-Beam Series .
Brand Wenglor Product Type Through-Beam Sensors Model Number OEWK803A0002
Wenglor OEWK803A0002 Photoelectric Sensor – Technical Specifications Specification Value Range 8,000 mm Light Source Red Light Service Life (T = +25 °C) 100,000 h Sensor Type Receiver Supply Voltage 10 ... 30 V DC Current Consumption (Ub = 24 V) < 20 mA Temperature Drift < 10 % Temperature Range -25 ... 60 °C Reverse Polarity Protection yes Protection Class III Housing Material Plastic, ABS/GF Degree of Protection IP67 Connection M12 × 1; 4-pin Weight 9 g Switching Hysteresis < 15 % Max. Ambient Light 10,000 Lux Switching Frequency 600 Hz Response Time 833 µs Switching Output Voltage Drop < 2.5 V Residual Current Switching Output < 50 µA Setting Method Potentiometer Circuit NC
NC+NO
NO Opening Angle 4 ° PNP NC, PNP NO yes PNP Switching Output/Switching Current 100 mA Scope of delivery 1 × mounting console Packaging unit 1 Piece
