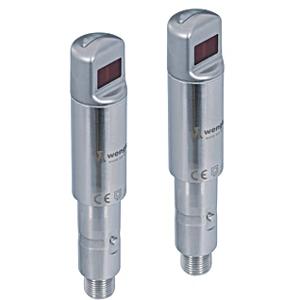

Home Brands Wenglor Through-Beam Sensors OED000C0003 Wenglor OED000C0003 Photoelectric Sensor The Wenglor OED000C0003 Photoelectric Sensor offers Laser (red) source, Receiver sensor type, 10 ... 30 V DC supply voltage, IP67 degree of protection. Manufactured by Wenglor under the Wenglor Photoelectric Sensor category, this model belongs to the Wenglor Through-Beam Series .
Brand Wenglor Product Type Through-Beam Sensors Model Number OED000C0003
Wenglor OED000C0003 Photoelectric Sensor – Technical Specifications Specification Value Light Source Laser (red) Service Life (T = +25 °C) 100,000 h Sensor Type Receiver Supply Voltage 10 ... 30 V DC Current Consumption (Ub = 24 V) < 15 mA Temperature Drift < 10 % Temperature Range -25 ... 60 °C Reverse Polarity Protection yes Protection Class III Housing Material Stainless steel, V2A (1.4305 / 303) Degree of Protection IP67 Connection M12 × 1; 4-pin Weight 68 g MTTFd (EN ISO 13849-1) 2,409.91 a Smallest Recognizable Part 250 µm Switching Hysteresis < 15 % Max. Ambient Light 10,000 Lux Switching Frequency 3 kHz Response Time 166 µs Switching Output Voltage Drop < 2.5 V Switching Output/Switching Current 200 mA Short Circuit Protection yes Overload Protection yes Setting Method Teach-In Circuit NC
NC/NO
NO PNP NC yes Laser Class (EN 60825-1) 1 Opening Angle 12 ° Full Encapsulation yes Contamination Output yes Teach Mode NT, MT
