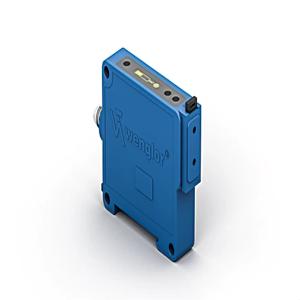

Home Wenglor Fiber-Optic Cable Amplifiers Fiber-Optic Cable Amplifiers Series ODX402P0008 Wenglor ODX402P0008 Photoelectric Sensor The Wenglor ODX402P0008 Photoelectric Sensor offers 18 ... 30 V DC supply voltage, 4 kHz switching frequency, -25 ... 60 °C temperature range, IP65 degree of protection. Manufactured by Wenglor under the Wenglor Photoelectric Sensor category, this model belongs to the Wenglor P1X Series .
Brand Wenglor Product Type Fiber-Optic Cable Amplifiers Model Number ODX402P0008
Wenglor ODX402P0008 Photoelectric Sensor – Technical Specifications Specification Value Switching Hysteresis < 15 % Light Source Red Light Service Life (T = +25 °C) 100,000 h Max. Ambient Light 10,000 Lux Supply Voltage 18 ... 30 V DC Current Consumption (Ub = 24 V) < 40 mA Switching Frequency 4 kHz Response Time 125 µs On-/Off-Delay 0 ... 10,000 ms Temperature Drift < 10 % Temperature Range -25 ... 60 °C Switching Output Voltage Drop < 2.5 V Switching Output/Switching Current 100 mA Short Circuit Protection yes Reverse Polarity Protection yes Overload Protection yes Teach Mode NT, MT, ZT, DT, FT, HT, TP Protection Class III Setting Method Menu (OLED) Housing Material Plastic, ABS
Plastic, PC Degree of Protection IP65 Connection M8 × 1; 3-pin DIN-Rail mounting 35 mm Weight 40 g MTTFd (EN ISO 13849-1) 854.78 a Output Push-pull, PNP Circuit NC, NC/NO, NO PNP NO yes
