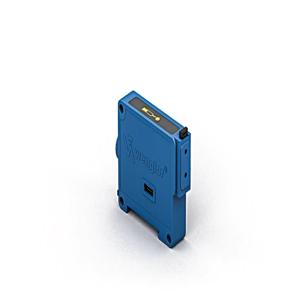

Wenglor ODX402P0099 Photoelectric Sensor

The Wenglor ODX402P0099 Photoelectric Sensor offers Red Light source, 0 ... 10,000 ms On-/Off-Delay, -25 ... 60 °C temperature range, IP50 degree of protection. Manufactured by Wenglor under the Wenglor Photoelectric Sensor category, this model belongs to the Wenglor P1X Series.

Brand	Wenglor
Product Type	Fiber-Optic Cable Amplifiers
Model Number	ODX402P0099

Wenglor ODX402P0099 Photoelectric Sensor – Technical Specifications

Specification	Value
Switching Hysteresis	< 15 %
Light Source	Red Light
Service Life (T = +25 °C)	100,000 h
Max. Ambient Light	10,000 Lux
On-/Off-Delay	0 ... 10,000 ms
Temperature Drift	< 10 %
Temperature Range	-25 ... 60 °C
Short Circuit Protection	yes
Reverse Polarity Protection	yes
Overload Protection	yes
Teach Mode	NT, MT, ZT, DT, FT, HT, TP
Protection Class	III
Setting Method	Menu (OLED)
Housing Material	Plastic, ABS Plastic, PC
Degree of Protection	IP50
DIN-Rail mounting	35 mm
Weight	37 g
MTTFd (EN ISO 13849-1)	1,739.96 a
Output	Push-pull, NPN, PNP
Circuit	NC, NC/NO, NO
PNP NO	yes
