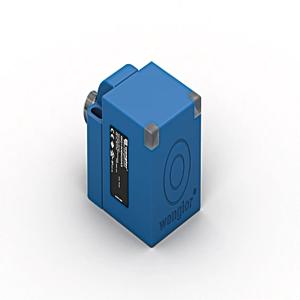

Home Wenglor Inductive Sensor Inductive Series ISQ250NK01A3 Wenglor ISQ250NK01A3 Inductive Sensor The Wenglor ISQ250NK01A3 Inductive Sensor offers 25 mm switching distance, Non-flush mounting, 10 ... 30 V DC supply voltage, M12 × 1; 4-pin connection. Manufactured by Wenglor under the Wenglor Inductive Sensor category, this model belongs to the Wenglor Inductive Series .
Brand Wenglor Product Type Inductive Sensor Model Number ISQ250NK01A3
Wenglor ISQ250NK01A3 Inductive Sensor – Technical Specifications Specification Value Switching Distance 25 mm Correction Factors Fe360/Stainless Steel V2A/CuZn/Al 1/0,09/0/0* Mounting Non-flush Mounting A/B/C/D in mm 0/80/75/40 Switching Hysteresis < 10 % Supply Voltage 10 ... 30 V DC Current Consumption (Ub = 24 V) < 10 mA Switching Frequency 300 Hz Temperature Drift < 10 % Temperature Range -25 ... 80 °C Switching Output Voltage Drop < 1.5 V Switching Output/Switching Current 200 mA Residual Current Switching Output < 100 µA Short Circuit Protection yes Reverse Polarity Protection yes Overload Protection yes Protection Class III Housing Material Plastic, ABS Sensing face Plastic, PBT Full Encapsulation yes Degree of Protection IP67 Connection M12 × 1; 4-pin Weight 120 g MTTFd (EN ISO 13849-1) 1,889.05 a Stock Type X PNP NC, PNP NO yes Circuit NC
NC+NO
NO
