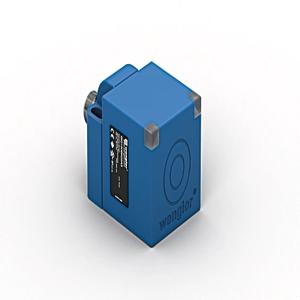

Home Wenglor Inductive Sensor Inductive Series ISQ150BK00A3 Wenglor ISQ150BK00A3 Inductive Sensor The Wenglor ISQ150BK00A3 Inductive Sensor offers 15 mm switching distance, Flush mounting, 10 ... 30 V DC supply voltage, M12 × 1; 4-pin connection. Manufactured by Wenglor under the Wenglor Inductive Sensor category, this model belongs to the Wenglor Inductive Series .
Brand Wenglor Product Type Inductive Sensor Model Number ISQ150BK00A3
Wenglor ISQ150BK00A3 Inductive Sensor – Technical Specifications Specification Value Switching Distance 15 mm Correction Factors Fe360/Stainless Steel V2A/CuZn/Al 0/0,74/1/1 Mounting Flush Mounting A/B/C/D in mm 0/40/45/0 Switching Hysteresis < 10 % Supply Voltage 10 ... 30 V DC Current Consumption (Ub = 24 V) < 10 mA Switching Frequency 300 Hz Temperature Drift < 10 % Temperature Range -25 ... 80 °C Switching Output Voltage Drop < 1.5 V Switching Output/Switching Current 200 mA Residual Current Switching Output < 100 µA Short Circuit Protection yes Reverse Polarity Protection yes Overload Protection yes Protection Class III Housing Material Plastic, ABS Sensing face Plastic, PBT Full Encapsulation yes Degree of Protection IP67 Connection M12 × 1; 4-pin Weight 121 g MTTFd (EN ISO 13849-1) 1,886.72 a Stock Type X PNP NC, PNP NO yes Circuit NC
NC+NO
NO
