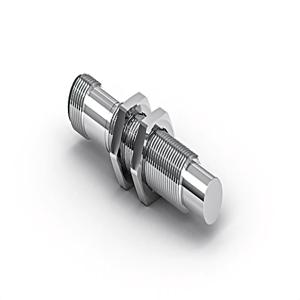

Home Wenglor Inductive Sensor Inductive Series IB060SE65UD3 Wenglor IB060SE65UD3 Inductive Sensor The Wenglor IB060SE65UD3 Inductive Sensor offers 6 mm switching distance, Non-flush mounting, 10 ... 30 V DC supply voltage, M12 × 1; 4-pin connection. Manufactured by Wenglor under the Wenglor Inductive Sensor category, this model belongs to the Wenglor Inductive Series .
Brand Wenglor Product Type Inductive Sensor Model Number IB060SE65UD3
Wenglor IB060SE65UD3 Inductive Sensor – Technical Specifications Specification Value Switching Distance 6 mm Correction Factors Stainless Steel V2A/CuZn/Al 0,97/0,30/0,27 Mounting Non-flush Mounting A/B/C/D in mm 12/18/18/10 Mounting A/B/C/D (V2A) in mm 12/18/18/10 Switching Hysteresis < 15 % Supply Voltage 10 ... 30 V DC Current Consumption (Ub = 24 V) < 15 mA Switching Frequency 500 Hz Temperature Drift < 10 % Temperature Range -25 ... 80 °C Switching Output Voltage Drop < 2.5 V Switching Output/Switching Current 400 mA Residual Current Switching Output < 100 µA Short Circuit Protection yes Reverse Polarity Protection yes Overload Protection yes Housing Material Stainless steel, V4A Sensing face Stainless steel, V4A Degree of Protection IP69K
IP68 Connection M12 × 1; 4-pin Pressure Resistance Sensor Area 60 bar Weight 51 g MTTFd (EN ISO 13849-1) 2,065.66 a Packaging unit 1 Piece Protection Class III Full Encapsulation yes PNP NC yes
