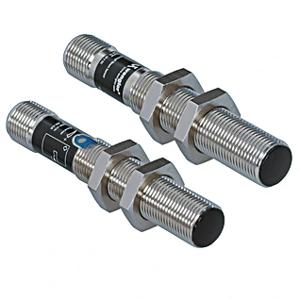

Home Wenglor Photoelectric Sensors Through-Beam Sensors EB77VB7 Wenglor EB77VB7 Photoelectric Sensor The Wenglor EB77VB7 Photoelectric Sensor offers 1,500 mm range, Receiver sensor type, 10 ... 30 V DC supply voltage, IP67 degree of protection. Manufactured by Wenglor under the Wenglor Photoelectric Sensor category, this model belongs to the Wenglor Through-Beam Series .
Brand Wenglor Product Type Through-Beam Sensors Model Number EB77VB7
Wenglor EB77VB7 Photoelectric Sensor – Technical Specifications Specification Value Range 1,500 mm Light Source Infrared Light Service Life (T = +25 °C) 100,000 h Sensor Type Receiver Supply Voltage 10 ... 30 V DC Current Consumption (Ub = 24 V) < 10 mA Temperature Drift < 10 % Temperature Range -10 ... 60 °C Reverse Polarity Protection yes Protection Class III Housing Material Stainless steel, V2A (1.4305 / 303) Degree of Protection IP67 Connection M8 × 1; 4-pin Weight 5 g MTTFd (EN ISO 13849-1) 5,573.47 a Switching Hysteresis < 15 % Max. Ambient Light 10,000 Lux Switching Frequency 500 Hz Response Time 1 ms Switching Output Voltage Drop < 2.5 V Switching Output/Switching Current 100 mA Residual Current Switching Output < 50 µA Short Circuit Protection yes Overload Protection yes PNP NO yes Opening Angle 20 ° Full Encapsulation yes
