cMT-SVRX-822 - Weintek Headless HMI

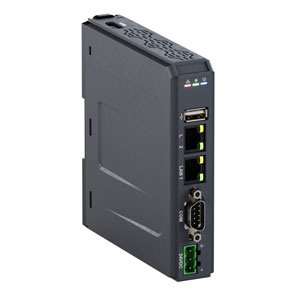

cMT-SVRX-822 Weintek Headless HMI
| Brand | Weintek |
| Product Type | HMI |
| Product | cMT-SVRX-822 |
Weintek Headless HMI cMT-SVRX-822 Technical Specifications:
| Specification | Value |
|---|
| Memory - Flash | 4 GB |
| Memory - RAM | 1 GB |
| Processor | Quad core RISC |
| USB Host | USB 2.0 x 1 |
| RTC | Built-in |
| Input Power | 24±20%VDC |
| Power Isolation | Built-in |
| Power Consumption | 850mA@24VDC |
| Voltage Resistance | 500VAC (1 min) |
| Isolation Resistance | Exceed 50MΩ at 500VDC |
| PCB Coating | Yes |
| Enclosure | Plastic |
| Dimensions W x H x D (mm) | 29.8 x 130 x 115 mm |
| Weight | Approx. 0.24 kg |
| Mount | 35mm DIN rail mounting |
| Storage Temperature | -20° ~ 60°C |
| Operating Temperature | 0° ~ 50°C |
| Relative Humidity | 10%~90% (non-condensing) |
| Altitude (Air Pressure) | Below 3000 m |
