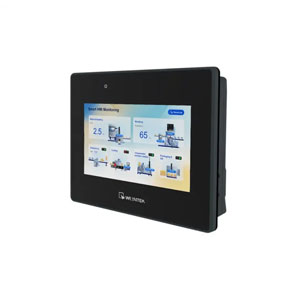

cMT3218XP - Weintek HMI Touch Panel
Weintek HMI Touch Panel cMT3218XP
| Brand | Weintek |
| Product Type | HMI |
| Product | cMT3218XP |
Weintek HMI Touch Panel cMT3218XP Technical Specifications:
| Specification | Value |
|---|
| Display - Size | 21.5” WVA |
| Display - Resolution | 1920x1080 |
| Display - Brightness (cd/m2) | 500 |
| Display - Contrast Ratio | 1000:1 |
| Display - Backlight Type | LED |
| Display - Backlight Life Time | >30,000 hrs |
| Display - Colors | 16.7M |
| Display - LCD Viewing Angle (T/B/L/R) | 89/89/89/89 |
| Memory - Flash | 4 GB |
| Memory - RAM | 2 GB |
| Processor | Quad core RISC |
| USB Host | USB 2.0 x 2 |
| RTC | Built-in |
| Input Power | 24±20%VDC |
| Power Isolation | Built-in |
| Power Consumption | 1.8A@24VDC |
| Voltage Resistance | 500VAC (1 min) |
| Isolation Resistance | Exceed 50MΩ at 500VDC |
| PCB Coating | Yes |
| Enclosure | Aluminum |
| Weight | Approx. 5.5kg |
| Mount | Panel mount, VESA mount 100 x 100 mm |
| Storage Temperature | -20° ~ 60°C |
| Operating Temperature | 0° ~ 50°C |
| Relative Humidity | 10%~90% (non-condensing) |
