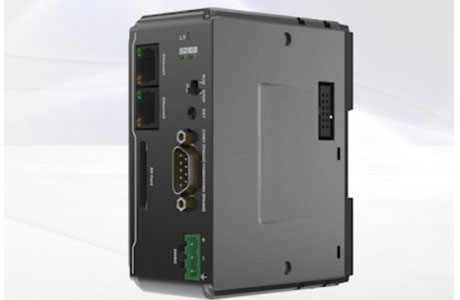

cMT-CTRL01 - Weintek HMI
| Brand | Weintek |
| Product Type | HMI |
| Product | cMT-CTRL01 |
Weintek HMI cMT-CTRL01 Technical Specifications:
| Specification | Value |
|---|
| Memory - Flash | 4 GB |
| Memory - RAM | 512 MB |
| Memory - Data, Memory, Code | 5 MB |
| Memory - Retain Area | 32 KB (every minute) |
| Memory - Power Off Retain Area | 32 KB (every download) |
| Memory - File System | 12 MB |
| Processor | Dual-core RISC |
| SD Card Slot | SD/SDHC |
| Ethernet | Ethernet 1: 10/100/1000 Base-T x1, Ethernet 2: 10/100 Base-T x1 |
| RTC | Built-in |
| Input Power | 24±20%VDC |
| Power Isolation | Built-in |
| Voltage Resistance | 500VAC (1 min) |
| Isolation Resistance | Exceed 50MΩ at 500VDC |
| PCB Coating | Yes |
| Enclosure | Plastic |
| Dimensions W x H x D (mm) | 50 x 109 x 81 mm |
| Weight | Approx. 0.24 kg |
| Mount | 35 mm DIN rail mounting |
| Protection Structure | IP20 |
| Relative Humidity | 10%~90% (non-condensing) |
| Altitude (Air Pressure) | Below 3000 m |
