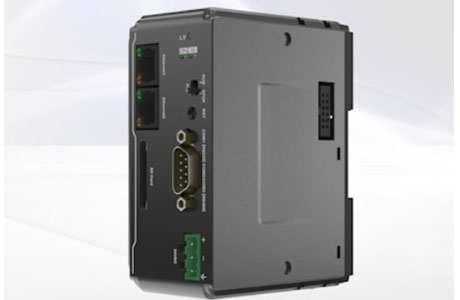

cMT-SVR-102 - Weintek HMI
| Brand | Weintek |
| Product Type | HMI |
| Product | cMT-SVR-102 |
Weintek HMI cMT-SVR-102 Technical Specifications:
| Specification | Value |
|---|
| Memory - Flash | 256 MB |
| Memory - RAM | 256 MB |
| Processor | Quad-core RISC |
| SD Card Slot | microSD x1 |
| USB Host | USB 2.0 x 1 |
| Ethernet | 10/100 Base-T x2 |
| RTC | Built-in |
| Input Power | 24±20%VDC |
| Power Isolation | Built-in |
| Voltage Resistance | 500VAC (1 min) |
| Isolation Resistance | Exceed 50MΩ at 500VDC |
| PCB Coating | Yes |
| Enclosure | Plastic |
| Dimensions W x H x D (mm) | 27 x 130 x 115 mm |
| Weight | Approx. 0.18kg |
| Mount | 35 mm DIN rail mounting |
| Protection Structure | IP20 |
| Relative Humidity | 10%~90% (non-condensing) |
| Altitude (Air Pressure) | 3000 m |
