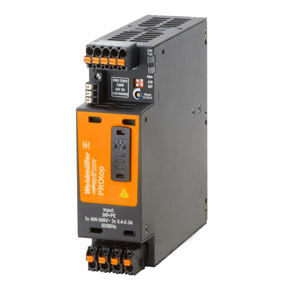

PRO TOP3 120W 24V 5A CO: 2467070000 - weidmuller 5 Amp Power Supply
weidmuller 5 Amp Power Supply PRO TOP3 120W 24V 5A CO, 2467070000 Technical Specifications:
| Brand | Weidmuller |
| Product Type | SMPS(Switch Mode Power Supply) |
| Product | PRO TOP3 120W 24V 5A CO |
weidmuller 5 Amp Power Supply PRO TOP3 120W 24V 5A CO, 2467070000 Technical Specifications:
| Specification | Value |
|---|---|
| Depth | 125 mm |
| Height | 130 mm |
| Width | 39 mm |
| AC input voltage range | 3 x 320...3 x 575 V AC / 2 x 360...2 x 575 V AC |
| Connection system | PUSH IN with actuator |
| DC input voltage range | 450...800 V DC |
| Frequency range AC | 45…65 Hz |
| Rated input voltage | 3x 400...3x 500 V AC (wide-range input) |
| Surge protection | Varistor |
| Rated output current | 5 A @ 60 °C |
| Output power | 120 W |
| Output voltage, max. | 28.8 V |
| Output voltage, min. | 22.5 V |
| Rated output voltage | 24 V DC ± 1 % |
| Protection degree | IP20 |
| Wire connection method | PUSH IN |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -40 °C...70 °C |
| Weight | 967 g |
IndMALL Automation Dealing offers weidmuller 5 Amp Power Supply PRO TOP3 120W 24V 5A CO Order no: 2467070000 at unbeatable prices. The Main Technical Parameters of PRO TOP3 120W 24V 5A CO, 2467070000 feature 125 mm depth, 130 mm height, 39 mm width, 3 x 320...3 x 575 V AC / 2 x 360...2 x 575 V AC & 450...800 V DC input voltage, 45…65 Hz frequency, PUSH IN with actuator connection, 3x 400...3x 500 V AC (wide-range input) rated input voltage, 24 V DC ± 1 % rated output voltage, 5 A @ 60 °C current, 120 W output power, PUSH IN wire connection, Varistor surge protection & IP20 degree of protection. Navigate Your Needs with a Quote for your requirement of weidmuller 5 Amp Power Supply. We excel in offering more cost-effective and supportive solutions than other Competitors.
