Weidmuller Power Supplies: 24vdc Supply & DC-DC Converters
Weidmuller Power Supplies, available at IndMALL Automation, offer a versatile range for industrial applications. Our Weidmuller 24VDC Power Supply is designed for efficiency and reliability, catering to diverse applications. The Weidmuller DC/DC Converter range stands out for its adaptability and high performance, ensuring stable power conversion in different environments.
For those looking for robust and efficient power solutions, our Weidmuller DC Power Supply offers the perfect combination of durability and precision. The DC/DC Converter Weidmuller models are particularly noted for their seamless integration and operational excellence. Choose IndMALL Automation for your Weidmueller Power Supply needs, where quality and performance meet.
Weidmuller Power Supplies Uninterruptible
Weidmuller Uninterruptible Power Supplies (UPS) feature:
- UPS System: Modular, with status relays and long battery life.
- Buffer Module: Bridges 20 A for 260 ms, with status indication.
- Battery Module: Maintenance-free lead-fleece batteries, temperature sensor for optimal charging.

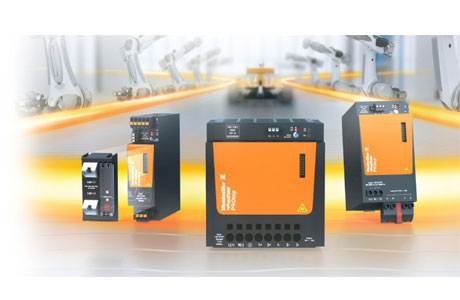

Weidmuller Switched Mode Power Supplies
Weidmüller switch mode power supplies include:
- PROtop Series: Up to 95.3% efficiency, DCL technology, explosion-safe.
- PROmax Series: 20% overload tolerance, wide temperature range, compact.
- PRObas Series: Compact, up to 95% efficiency, -25°C to +70°C range.
- PROeco Series: 93% efficiency, compact, advanced safety features.
- INSTA POWER Series: Broad power/temperature range, versatile input.
- PRO PM Series: 35 W to 350 W range, versatile, flat design.
Weidmuller Power Supply: Electronic Load Monitoring
Weidmuller Electronic Load Monitoring offers:
- Modular, space-saving design.
- Combines load monitoring and potential distribution.
- Up to 50% space savings on terminal rail.
- Single-channel and four-channel options.
- Redundant supply for reliable control voltage.
- 3D CAD models and CAE data for detailed product information.

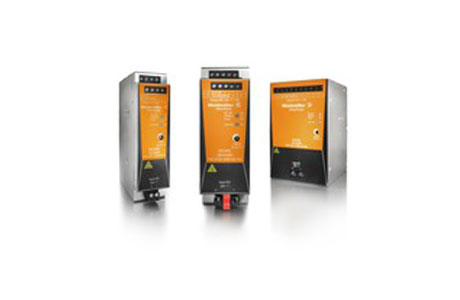

Weidmuller DC/DC Converter
Weidmuller DC/DC converters are:
- DC/DC Converter Range: Offers a wide range of solutions for various applications, both domestic and international, with Industrial IoT capabilities.
- PROtop DC/DC Converter: Features integrated ORing MOSFET for reliable decoupling, and direct parallel connection capabilities.
- PRO DCDC: Provides galvanic isolation and protection class III, high efficiency up to 95%, and a wide operating temperature range from -25°C to +70°C.
- Additional Features: Includes redundancy and diode modules, and services for optimizing power supply systems.
Weidmuller SMPS: Redundancy and Diode Modules
- Insulation Voltage: 0.5 kV for both input/earth and output/earth.
- Protection Class: III, suitable for SELV without ground connection.
- Electrical Safety: Complies with EN60204 and EN50178/VDE0160 standards; Connection Data:
- Input: Conductor cross-section 0.18 – 6 mm², screw connection.
- Output: Conductor cross-section 0.18 – 6 mm², screw connection, 4 terminals (++ / –).
Weidmuller 24 VDC Power Supply: Communication Modules
- Cloud data exchange for process optimization
- IP20 protection
- Tool-free operation
- Supports customizable communication protocols
Product List:
Model No |
Image |
Input Voltage |
Output Voltage |
Frequency range AC |
Connection system |
|---|---|---|---|---|---|
| PRO MAX 240W 24V 10A |  |
100…240 V AC | 22.5 V…29.5 V | 45…65 Hz | Screw |

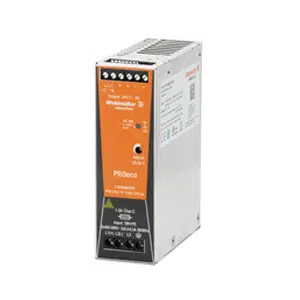

| PRO ECO 120W 24V 5A |  |
100…240 V AC | 22 V…28 V | 47…63 Hz | Screw |
| PRO ECO3 960W 24V 40A |  |
450…800 V DC | 22 V…28 V | 47…63 Hz | Screw |

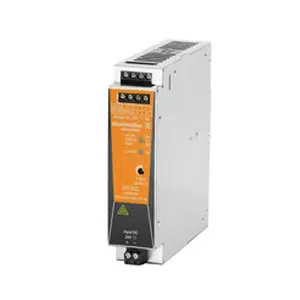

| PRO DCDC 120W 24V 5A |  |
24 V DC/td> | 22.5 V… 29.5 V | – | Screw |
Our product lineup includes a variety of Weidmuller power supplies models, each designed to cater to different industrial needs. Below are some examples:
The PRO MAX 240W 24V 10A model, with an input voltage of 100–240 V AC, offers an adjustable output voltage from 22.5 V to 29.5 V and operates within a 45–65 Hz frequency range, featuring a secure screw connection. PRO ECO 120W 24V 5A provides an output voltage range of 22 V to 28 V for the same input voltage range, operating at a frequency range of 47–63 Hz.
For higher capacity needs, the PRO ECO3 960W 24V 40A caters to a 450–800 V DC input, delivering an output voltage between 22 V and 28 V. The PRO DCDC 120W 24V 5A, a DC/DC converter, is tailored for a 24 V DC input with an output voltage range of 22.5 V to 29.5 V. Each model is equipped with a screw connection system, ensuring reliability and ease of installation for diverse industrial applications.
Frequently Asked Questions
Does a Power Supply Convert AC to DC?
Yes, a power supply typically converts AC (Alternating Current) to DC (Direct Current). This process is essential for powering various electronic devices. The conversion ensures a stable and consistent DC output, suitable for sensitive electronics.
What is a DC-DC converter used for?
A DC-DC converter is used to change one DC voltage level to another. It’s essential in devices needing different voltage levels from a single power source.
This converter ensures stable and efficient power supply, adapting to various electronic applications. It’s crucial in battery-operated devices, automotive applications, and renewable energy systems.
What is 24VDC power supply?
A 24VDC power supply converts AC power to a 24-volt DC output. It’s widely used in industrial automation, telecommunications, and electronic equipment.
This power supply provides a stable and reliable DC voltage, essential for sensitive electronic devices. It’s known for efficiency and safety in powering control systems and machinery.
What is the Voltage of a DC Power Supply?
The voltage of a DC power supply varies widely, typically ranging from 5V to 48V. It depends on the application’s requirements. Common voltages include 12V and 24V, used in many electronic devices and industrial applications. The specific voltage is chosen based on the needs of the equipment it powers.
Please share your Weidmuller Power Supplies Requirement to sales@indmall.in
