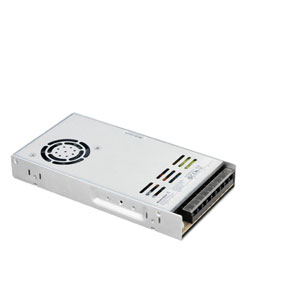

PRO PM 250W 24V 10.5A: 2660200292 - Weidmuller 24V 250W Power Supply
Technical Specifications of Weidmuller 24V 250W Power Supply PRO PM 250W 24V 10.5A 2660200292:
| Spec | Value |
|---|---|
| Connection system | Screw connection |
| Frequency range AC | 47...63 Hz |
| Rated Current | 10.5 A |
| Output power | 250 W |
Weidmuller 24V 250W Power Supply PRO PM 250W 24V 10.5A, 2660200292 Technical Specifications:
| Specification | Value |
|---|---|
| Depth | 215 mm |
| Height | 30 mm |
| Width | 115 mm |
| AC input voltage range | 90…264 V AC |
| Connection system | Screw connection |
| DC input voltage range | - |
| Frequency range AC | 47...63 Hz |
| Rated input voltage | 100...240 V AC |
| Surge protection | 28...32 V @ 24 V DC |
| Rated output current | 10.5 A |
| Output power | 250 W |
| Output voltage, max. | - |
| Output voltage, min. | - |
| Rated output voltage | 24 V DC |
| Protection degree | IP20 |
| Wire connection method | Screw connection |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -20 °C...70 °C |
| Weight | 0.836 g |
Call us for Weidmuller 24V 250W Power Supply PRO PM 250W 24V 10.5A Order no: 2660200292 at the lowest pricing. In-depth Technical Analysis of PRO PM 250W 24V 10.5A, 2660200292 feature 215 mm depth, 30 mm height, 115 mm
width, 90…264 V AC input voltage, 47...63 Hz frequency, Screw connection, 100...240 V AC rated input voltage, 24 V DC rated output voltage, 10 A current, 250 W
output power, IP20 degree of protection. Capture the Best Deal with a Quote for your requirement of Weidmuller 24V 250W Power Supply. Our promise: More affordable pricing and more personalized support than other Dealers.
