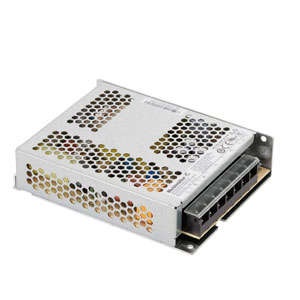

PRO PM 100W 48V 2.3A: 2660200287 - Weidmuller 100W Power Supply
Weidmuller 100W Power Supply PRO PM 100W 48V 2.3A, 2660200287 Technical Specifications:
| Brand | Weidmuller |
| Product Type | SMPS(Switch Mode Power Supply) |
| Product | PRO PM 100W 48V 2.3A |
Weidmuller 100W Power Supply PRO PM 100W 48V 2.3A, 2660200287 Technical Specifications:
| Specification | Value |
|---|---|
| Depth | 129 mm |
| Height | 30 mm |
| Width | 97 mm |
| AC input voltage range | 90…264 V AC |
| Connection system | Screw connection |
| DC input voltage range | - |
| Frequency range AC | 47...63 Hz |
| Rated input voltage | 100...240 V AC |
| Surge protection | - |
| Rated output current | 2.3 A |
| Output power | 100 W |
| Output voltage, max. | - |
| Output voltage, min. | - |
| Rated output voltage | 48 V DC |
| Protection degree | IP20 |
| Wire connection method | Screw connection |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -20 °C...70 °C |
| Weight | 330 g |
IndMALL Offers Weidmuller 100W Power Supply PRO PM 100W 48V 2.3A Order no: 2660200287 at economical Choices. Product Tech Specs of PRO PM 100W 48V 2.3A, 2660200287 include 129 mm depth, 30 mm height, 97 mm
width, 90…264 V AC input voltage, 47...63 Hz frequency, Screw connection, 100...240 V AC rated input voltage, 48 V DC rated output voltage, 2.3 A current, 100 W output power, IP20 degree of protection. Now's the Time to Secure a Quote for your requirement of Weidmuller 100W Power Supply. Trust in our superior pricing and more dedicated support over other Distributors.
