In most procurement cycles, PRO-PM-100W-12V-8-5A is considered with Meanwell SMPS, Weidmuller Power Supply 24Vdc 10A and SMPS Bihar, giving decision-makers confidence that they’ve chosen the most dependable component.

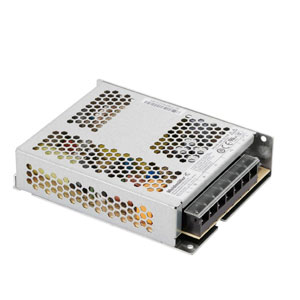

PRO PM 100W 12V 8.5A: 2660200285 - Weidmuller 12V Switch Mode Power Supply
Weidmuller 12V Switch Mode Power Supply PRO PM 100W 12V 8.5A, 2660200285 Technical Specifications:
| Brand | Weidmuller |
| Product Type | SMPS(Switch Mode Power Supply) |
| Product | PRO PM 100W 12V 8.5A |
Weidmuller 12V Switch Mode Power Supply PRO PM 100W 12V 8.5A, 2660200285 Technical Specifications:
| Specification | Value |
|---|---|
| Depth | 129 mm |
| Height | 30 mm |
| Width | 3.819 inch |
| AC input voltage range | 90…264 V AC |
| Connection system | Screw connection |
| DC input voltage range | - |
| Frequency range AC | 47...63 Hz |
| Rated input voltage | 100...240 V AC |
| Surge protection | 13.5...16.2 V @ 12 V DC |
| Rated output current | 8.5 A |
| Output power | 100 W |
| Output voltage, max. | - |
| Output voltage, min. | - |
| Rated output voltage | 12 V DC |
| Protection degree | IP20 |
| Wire connection method | Screw connection |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -20 °C...70 °C |
| Weight | 330 g |
Talk to Our Engineer for Weidmuller 12V Switch Mode Power Supply PRO PM 100W 12V 8.5A Order no: 2660200285 with special pricing. Detailed Specifications of PRO PM 100W 12V 8.5A, 2660200285 include 129 mm
depth, 30 mm
height, 3.819 inch width, 90…264 V AC input voltage, 47...63 Hz frequency, Screw connection, 100...240 V AC
rated input voltage, 12 V DC rated output voltage, 8.5 A current, 100 W output power, IP20 degree of protection. Take the First Step with a Quote for your requirement of Weidmuller 12V Switch Mode Power Supply. Our commitment to better pricing and exceptional support sets us apart from other Dealers & Distributors.
