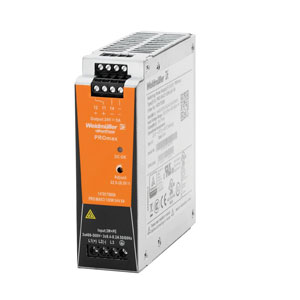

PRO MAX3 120W 24V 5A: 1478170000 - Weidmuller Power Supply 24VDC 5A
Weidmuller PRO MAX3 120W 24V 5A is a compact SMPS built for reliable 24V DC power in automation systems.
| Brand | Weidmuller |
| Product Type | SMPS(Switch Mode Power Supply) |
| Product | PRO MAX3 120W 24V 5A |
Weidmuller Power Supply 24VDC 5A PRO MAX3 120W 24V 5A, 1478170000 Technical Specifications:
| Specification | Value |
|---|---|
| Depth | 125 mm |
| Height | 130 mm |
| Width | 40 mm |
| AC input voltage range | 3 x 320...3 x 575 V AC / 2 x 360...2 x 575 V AC |
| Connection system | Screw connection |
| DC input voltage range | 450...800 V DC |
| Frequency range AC | 45…65 Hz |
| Rated input voltage | 3x 400...3x 500 V AC (wide-range input) |
| Surge protection | Varistor |
| Rated output current | 5 A @ 60 °C |
| Output power | 120 W |
| Output voltage, max. | 29.5 V |
| Output voltage, min. | 22.5 V |
| Rated output voltage | 24 V DC ± 1 % |
| Protection degree | IP20 |
| Wire connection method | - |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -25 °C...70 °C |
| Weight | 783 g |
The Weidmuller PRO MAX3 120W 24V 5A (Order No: 1478170000) is a high-quality Weidmuller SMPS designed to deliver dependable and stable power in industrial environments. It provides a rated output of 24V DC ±1% with 5A output current, producing a total power of 120W. Supporting an input range of 3x 400–500V AC and 450–800V DC, this model ensures uninterrupted operation across a wide voltage spectrum. Built with varistor surge protection and a frequency range of 45–65 Hz, it guarantees safety and consistent performance for control systems and automated machinery.
Compactly designed with 125 mm depth, 130 mm height, and 40 mm width, this Power Supply 24VDC 5A fits seamlessly into limited control cabinet spaces. It features a screw connection system that simplifies wiring and ensures firm contact under vibration conditions. The IP20 protection rating enhances operational safety, while the robust construction and lightweight 783 g design make it ideal for continuous operation. The Weidmuller 1478170000 offers efficiency, thermal stability, and durability, making it one of the most trusted Weidmuller Power Supply 24VDC solutions in industrial automation.
The Weidmuller PRO MAX3 120W 24V 5A SMPS is ideal for powering PLCs, sensors, and automation panels requiring a steady 24V DC output. Its compact size and rugged performance make it suitable for use in manufacturing lines, process control systems, and test setups. Engineers value this Weidmuller Power Supply 24VDC 5A for its overload protection, voltage accuracy, and long service life. Known for energy efficiency and dependable output, the PRO-MAX3-120W-24V-5A-1478170000 remains a preferred Weidmuller Power Supply 24VDC model trusted across industrial applications.
