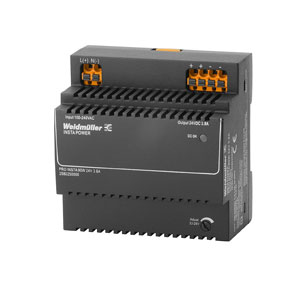

PRO INSTA 90W 24V 3.8A: 2580250000 - Weidmuller 24V 90W Power Supply
Weidmuller 24V 90W Power Supply PRO INSTA 90W 24V 3.8A, 2580250000 Technical Specifications:
| Brand | Weidmuller |
| Product Type | SMPS(Switch Mode Power Supply) |
| Product | PRO INSTA 90W 24V 3.8A |
Weidmuller 24V 90W Power Supply PRO INSTA 90W 24V 3.8A, 2580250000 Technical Specifications:
| Specification | Value |
|---|---|
| Depth | 60 mm |
| Height | 90 mm |
| Width | 90 mm |
| AC input voltage range | 85...264 V AC (derating at 100 V AC) |
| Connection system | PUSH IN with actuator |
| DC input voltage range | 95…370 V DC |
| Frequency range AC | 45…65 Hz |
| Rated input voltage | 110...240 V AC / 120...340 V DC |
| Surge protection | - |
| Rated output current | 3.8 A @ 55 °C 2.38 A @ 70 °C |
| Output power | 90 W |
| Output voltage, max. | 25 V |
| Output voltage, min. | 22 V |
| Rated output voltage | 24 V DC ± 1 % |
| Protection degree | IP20 |
| Wire connection method | PUSH IN with actuator |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -25 °C...70 °C |
| Weight | 352 g |
Send Us an Email for Weidmuller 24V 90W Power Supply PRO INSTA 90W 24V 3.8A Order no: 2580250000 at the lowest pricing. Technical Specs Summary of PRO INSTA 90W 24V 3.8A, 2580250000 includes 60 mm depth, 90 mm height, 90 mm width, 85...264 V AC (derating at 100 V AC) & 95…370 V DC input voltage, 45…65 Hz frequency, PUSH IN with actuator connection, 110...240 V AC / 120...340 V DC rated input voltage, 24 V DC ± 1 % rated output voltage, 3.8 A output current, 90 W output power, PUSH IN with actuator wire connection, IP20 degree of protection. Capture the Best Deal with a Quote for your requirement of Weidmuller 24V 90W Power Supply. Our promise: More affordable pricing and more personalized support than other Competitors.
