Siemens HMI – Simantic HMI Touch Panel

Get a Quote

Siemens HMI (Human Machine Interface) panels, part of the trusted Simatic HMI series from Siemens, are engineered for real-time machine interaction, seamless control, and data visualization in industrial environments. At IndMALL Automation, we offer a wide selection of Siemens HMI touch panels, including popular models like KTP400, KTP700, TP900, and TP1200 – tailored to various display sizes and automation needs.

Whether you’re upgrading legacy systems or deploying new factory lines, Siemens Simatic HMI devices ensure high reliability, intuitive operation, and full integration with TIA Portal (WinCC) software.

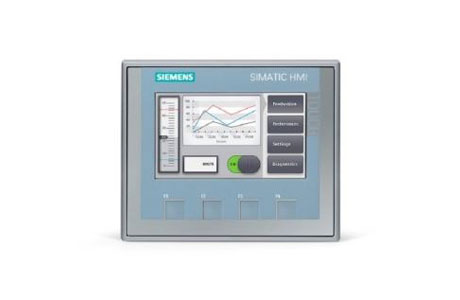

Siemens HMI

Siemens HMI – KTP400 Series

  • Display: 4.3 inch TFT, 64K colors, 480 x 272 px resolution.
  • Control: Touch screen and 4 function keys.
  • Memory: 10 MB user memory.
  • Interfaces: PROFINET RJ 45 Ethernet, USB host.
  • Dimensions: Installation cutout 123 x 99 mm, front panel 141 x 116 mm, depth 43 mm.
  • Software: WinCC Basic (TIA Portal) V13+.
  • Functionality: 1000 messages, 100 process screens, 800 tags, vector/bar graphics, 50 recipes, archiving.
Siemens Touch Panel KTP700

Siemens Touch Panel – KTP700 Series

  • Display: 7 inch TFT, 64K colors, 800 x 480 px.
  • Control: Touch screen, 8 function keys.
  • Memory: 10 MB user memory.
  • Interfaces: Ethernet for PROFINET (KTP700 Basic) or RS 485 for PROFIBUS/MPI (KTP700 Basic DP), plus USB host.
  • Dimensions: Cutout 197 x 141 mm, front panel 214 x 158 mm, depth 46 mm.
  • Functionality: 1000 messages, 100 process screens, 800 tags, vector/bar graphics, 50 recipes, archiving.

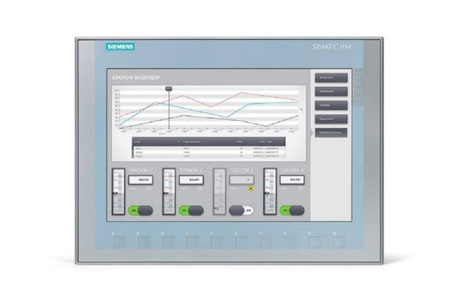

Siemens Simatic HMI

Siemens Simatic HMI – KTP900 Series

  • Display: 9 inch TFT, 64K colors, 800 x 480 px resolution.
  • Control: Touch screen and 8 function keys.
  • Memory: 10 MB user memory.
  • Interfaces: 1 x RJ 45 Ethernet for PROFINET, 1 x USB host.
  • Protection: IP 65/NEMA 4x front, IP 20 rear.
  • Dimensions: Installation cutout 251 x 166 mm, front panel 267 x 182 mm, depth 47 mm.
  • Functionality: 1000 messages, 100 process screens, 800 tags, vector/bar graphics, curve diagrams (f(t)), 50 recipes, archiving.
Siemens Touch Screen KTP1200

Siemens Touch Screen – KTP1200 Series

  • Display: 12 inch TFT, 64K colors, 1280 x 800 px.
  • Control: Touch screen, 10 function keys.
  • Memory: 10 MB user memory.
  • Interfaces: Ethernet for PROFINET (KTP1200 Basic) or RS 485 for PROFIBUS/MPI (KTP1200 Basic DP), plus USB host.
  • Dimensions: Cutout 310 x 221 mm, front panel 330 x 245 mm, depth 62 mm.
  • Functionality: 1000 messages, 100 process screens, 800 tags, vector/bar graphics, 50 recipes, archiving.

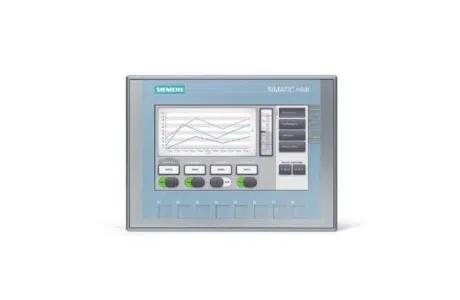

Siemens Comfort Panels TP1200

Siemens Comfort Panels – TP1200 Series

  • Type: Comfort Panel, touch operation, support arm.
  • Display: 12″ widescreen TFT, 16 million colors.
  • Interfaces: PROFINET, MPI/PROFIBUS DP.
  • Memory: 12 MB configuration memory.
  • Operating System: WEC 2013.
  • Configuration: WinCC Comfort V14 SP1 with HSP.
  • Dimensions: 30.40 x 46.70 x 20.00 cm.
Siemens HMI TP900

Siemens HMI TP900

  • Type: Comfort Panel, touch operation.
  • Display: 9″ widescreen TFT, 16 million colors.
  • Interfaces: PROFINET, MPI/PROFIBUS DP.
  • Memory: 12 MB configuration memory.
  • Configuration: Configurable from WinCC Comfort V11.
  • Product Family: Comfort Panels standard devices.
  • Dimensions: 36.00 x 50.90 x 12.30 cm.

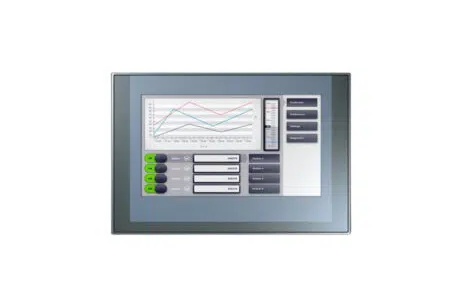

Siemens Simatic Panel: TP700

Siemens Simatic Panel – TP700 Comfort

  • Type: Comfort Panel, touch operation.
  • Display: 7″ widescreen TFT, 16 million colors.
  • Interfaces: PROFINET, MPI/PROFIBUS DP.
  • Memory: 12 MB configuration memory.
  • Configuration: Configurable from WinCC Comfort V11.
  • Dimensions: 19.70 x 26.60 x 11.80 cm.

Siemens HMI (Human Machine Interface) panels from the Siemens Simatic HMI series offer intuitive operation, reliable performance, and flexible control for industrial automation systems. At IndMALL Automation, we provide a wide selection of Siemens Simatic HMI touch panels, including popular models like the KTP700 Comfort, TP900, and KTP1200. These panels are available in multiple screen sizes—such as 7-inch and 10-inch—allowing precise machine interaction in both compact and large-scale applications.

Our 7-inch Siemens HMI panels are ideal for space-constrained environments, while 10-inch models provide broader visibility and more touch functions. Each panel is compatible with WinCC (TIA Portal) software and supports PROFINET and PROFIBUS communication for smooth integration.

Whether you’re looking for a basic HMI interface or an advanced Siemens comfort panel, IndMALL delivers cost-effective solutions with transparent Siemens HMI pricing and full product catalog access. Choose us for reliable Siemens HMI software support, fast quotes, and a trusted supply network across India.

Product List:

Model No Image Design of Display Display Width Display Height Active power input, typ. Power Supply(V)

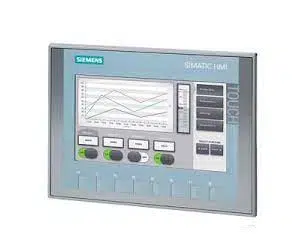

6AG1123-2GB03-2AX0 6AG1123-2GB03-2AX0 TFT widescreen display, LED backlighting 154.1 mm 85.9 mm 5.5 W 24VDC
6AV2143-6DB00-0AA0 6AV2143-6DB00-0AA0 TFT widescreen display, LED backlighting 95 mm 53.9 mm – 24 VDC

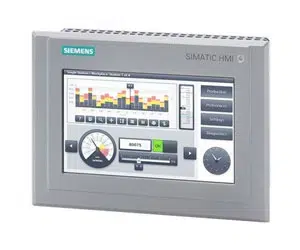

6AV2124-0GC13-0AX0 6AV2124-0GC13-0AX0 TFT, bonded, daylight-readable 152.4 mm 91.4 mm 17 W 24 VDC

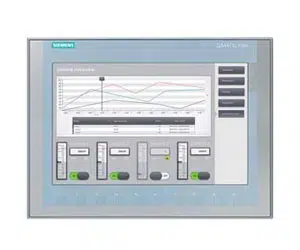

6AV2123-2MB03-0AX0 6AV2123-2MB03-0AX0 TFT widescreen display, LED backlighting 261.1 mm 163.2 mm 12.2 W 24 VDC

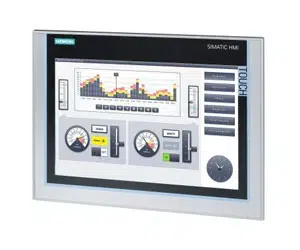

6AV2124-0MC01-0AX0 6AV2124-0MC01-0AX0 TFT 261.1 mm 163.2 mm 20 W 24 VDC

Frequently Asked Questions

What is Siemens HMI?

Siemens HMI (Human Machine Interface) is a user interface for industrial control systems. It allows operators to interact with machinery and processes.

Siemens offers various HMI models, like touch panels and key panels, for efficient monitoring and control. These interfaces are integral in automation, enhancing user experience and operational efficiency in industrial settings.

What is the Difference Between Siemens KTP and TP?

The difference between Siemens KTP and TP HMI panels lies in their functionality and design:

  • KTP (Key and Touch Panel) combines touchscreens with physical keys for input.
  • TP (Touch Panel) offers full touchscreen interfaces without physical keys.
  • KTP is ideal for applications requiring both touch and tactile feedback.
  • TP is suited for more intuitive, touch-only user interactions.

Which Software is Used for Siemens HMI?

Siemens HMI programming and configuration are primarily done using TIA Portal (Totally Integrated Automation Portal). This software integrates functions for engineering Siemens automation devices, including HMI.

TIA Portal offers a unified environment for programming Siemens SIMATIC HMI panels, streamlining the development process with intuitive tools and features.

What Size is Siemens HMI?

Siemens HMI panels come in various sizes to fit different applications. The sizes range from small 4-inch displays to large 22-inch screens.

Common sizes include 7-inch, 9-inch, 12-inch, and 15-inch models. Each size is designed to offer optimal visibility and user interaction for specific industrial control and monitoring tasks.

What is Siemens Simatic HMI?

Siemens Simatic HMI refers to a range of user interface panels developed by Siemens for industrial applications. These Human-Machine Interface (HMI) panels enable operators to interact with and monitor automated processes.

They feature touch screens, graphical displays, and connectivity options, facilitating efficient control and visualization of machine operations in various industrial environments.
