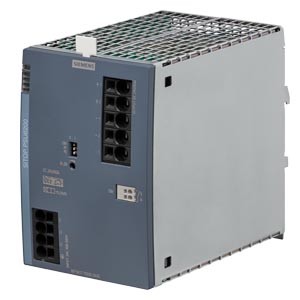

Siemens 6EP3437-7SB00-3AX0 Power Supplies
Siemens 6EP3437-7SB00-3AX0 Power Supplies
| Brand | Siemens |
| Product Type | Power Supplies |
| Model Number | 6EP3437-7SB00-3AX0 |
Siemens 6EP3437-7SB00-3AX0 Power Supplies – Technical Specifications
| Specification | Value |
|---|
| Type of the power supply network | 3-phase AC or DC |
| minimum rated value | 400 V |
| maximum rated value | 500 V |
| initial value | 323 V |
| full-scale value | 576 V |
| supply voltage at DC | 500 ... 550 V |
| input voltage at DC | 450 ... 600 V |
| line frequency | 50/60 Hz |
| line frequency (2) | 47 ... 63 Hz |
| number of outputs | 1 |
| type of signal at output | Electronic contact (NO contact, contact rating 30 V DC/0.1 A) for DC O.K. or diagnostic interface |
| rated value | 40 A |
| rated range | 0 ... 40 A; 48 A up to +45°C; +60 ... +70 °C: Derating 3%/K |
| supplied active power typical | 960 W |
| protection class IP | IP20 |
| during transport | 40 ... +85 °C |
| during storage | 40 ... +85 °C |
| type of electrical connection | push-in terminals |
| width × height × depth of the enclosure | 95 × 135 × 155 mm |
| installation width × mounting height | 95 mm × 225 mm |
| Top | 45 mm |
| Bottom | 45 mm |
| Left | 0 mm |
| Right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x7.5/15 |
| net weight | 2.1 kg |
