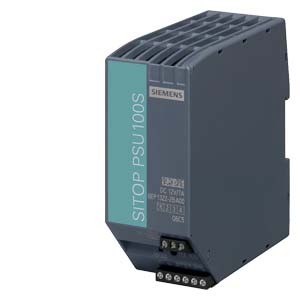

Siemens 6EP1322-2BA00 Power Supplies
Siemens 6EP1322-2BA00 Power Supplies
| Brand | Siemens |
| Product Type | Power Supplies |
| Model Number | 6EP1322-2BA00 |
Siemens 6EP1322-2BA00 Power Supplies – Technical Specifications
| Specification | Value |
|---|
| Type of the power supply network | 1-phase AC |
| supply voltage at DC | 120 V/230 V |
| line frequency | 50/60 Hz |
| line frequency (2) | 47 ... 63 Hz |
| type of signal at output | Relay contact (NO contact, rating 60 V DC/ 0.3 A) for 12 V OK |
| rated value | 7:00 AM |
| rated range | 0 ... 7 A; +50 ... +70 °C: Derating 0.75%/K |
| supplied active power typical | 84 W |
| protection class IP | IP20 |
| during transport | 40 ... +85 °C |
| during storage | 40 ... +85 °C |
| type of electrical connection | screw terminal |
| width × height × depth of the enclosure | 50 × 125 × 120 mm |
| installation width × mounting height | 50 mm × 225 mm |
| Top | 50 mm |
| Bottom | 50 mm |
| Left | 0 mm |
| Right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x7.5/15 |
| net weight | 0.5 kg |
