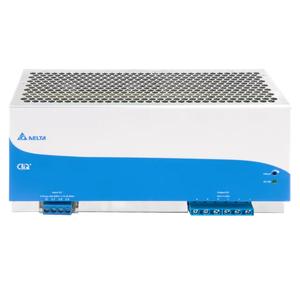

Delta DRP024V960W3BN 24V 40A DIN Rail Power Supply
Delta DRP024V960W3BN is a 40A 24V DIN Rail Power Supply designed for industrial automation, high-power control panels, and systems requiring reliable 24V DC output. Supporting a nominal input voltage of 3 x 400–500Vac with a wide input range of 3 x 320–600Vac, this unit ensures stable voltage delivery for PLCs, relays, sensors, and other automation devices. Its DIN rail mounting design enables structured, space-efficient installation in industrial enclosures. Manufactured by Delta Industrial Automation, this model is part of the Delta Power Supply Solutions category and belongs to the Delta DIN Rail CliQ II Series, delivering dependable 960W DC power for process control, industrial systems, and automation applications.
| Brand | Delta |
| Product Type | SMPS |
| Product | DRP024V960W3BN |
Delta 40A 960W DIN Rail Power Supply DRP024V960W3BN Technical Specifications:
| Specification | Value |
|---|---|
| Output Current | 40A |
| Output Voltage | 24V |
| Output Voltage Adjustment Range | 24-28Vdc |
| Output Power | 960W |
| Line Regulation | < 0.5% (@ 3 x 320-600Vac input, 100% load) |
| Load Regulation | < 1.0% (@ 3 x 320-600Vac input, 0-100% load) |
| PARD | < 240mVpp |
| Start-up Time | < 1,500ms @ nominal input (100% load) |
| Hold-up Time | > 20ms @ 3 x 400Vac & 3 x 500Vac (100% load) |
| Dynamic Response (Overshoot & Undershoot O/P Voltage) | ± 5% @ 3 x 320-600Vac input, 10-100% load (Slew Rate: 0.1A/μs, 50% duty cycle @ 5Hz to 1KHz) |
| Start-up with Capacitive Loads | 10,000μF Max |
| Rise Time | < 100ms @ nominal input (100% load) |
| Nominal Input Voltage | 3 x 400-500Vac |
| Input Voltage Range | 3 x 320-600Vac |
| Nominal Input Frequency | 50-60Hz |
| Input Frequency Range | 47-63Hz |
| DC Input Voltage Range | 450-800Vdc |
| Input Current | < 1.70A @3 x 400Vac, < 1.40A @ 3 x 500Vac |
| Efficiency at 100% load | > 92.0% @ 3 x 400Vac & 3 x 500Vac |
| Inrush Current | < 60A @ 3 x 400Vac & 3 x 500Vac |
| Power Factor at 100% load | > 0.95 @ 3 x 400Vac, > 0.94 @ 3 x 500Vac |
| Leakage Current | < 3.5mA @ 3 x 600Vac |
| Power Dissipation | 0% load: < 5.8W @ 3 x 400Vac, < 6.2W @ 3 x 500Vac 100% load: < 83.4W @ 3 x 400Vac & 3 x 500Vac |
| Case Chassis / Cover | Aluminium |
| Indicator | Green LED (DC OK) |
| Cooling System | Convection |
| Input Terminal | 4 Pins (Rated 600V/35A) |
| Output Terminal | 6 Pins (Rated 300V/30A) |
| Noise Sound Pressure Level (SPL) | < 40dBA |
| Mounting Rail | Standard TS35 DIN Rail in accordance with EN 60715 |
| Wire | Input: AWG 18-8 Output: AWG 12-10 (ensure that all output terminals are connected) |
| Unit Weight | 2.60 kg (5.73 lb) |
| Operating Temperature | -25°C to +65°C (Cold Start at -40°C) |
| Storage Temperature | -40°C to +85°C |
| Power De-rating | Vertical: > 50°C de-rate power by 2.5% / °C |
| Operating Humidity | 5 to 95% RH (Non-Condensing) |
| Shock Test (Non-Operating) | IEC 60068-2-27, 30G (300m/S²) for a duration of 18ms, 1 times per direction, 2 times in total |
| Vibration (Non-Operating) | IEC 60068-2-6, 10Hz to 500Hz @ 30m/S² (3G peak); 60 min per axis for all X, Y, Z direction |
| Operating Altitude | 0 to 2,500 Meters (8,200 ft.) |
| Pollution Degree | 2 |
| Bump Test (Operating) | IEC 60068-2-29, Half Sine Wave: 10G for a duration of 11ms, 1,000 times per direction, 6,000 times in total |
| Over Voltage Category | III According to IEC/EN 62477-1 / EN 60204-1 (clearance and creepage distances) and IEC 62103 (safety part) |
| Residual Ripple/PARD (20MHz) | < 240mVpp |
| Nominal DC Input Voltage | 500Vdc |
The Delta DRP024V960W3BN 960W 24V DIN Rail Power Supply is built for demanding industrial applications that require a consistent 24V DC output at 40A. Engineered for continuous operation, it delivers low ripple, precise line and load regulation, and efficient performance across full load conditions. With input and output terminals rated at 600V/35A and 300V/30A, the unit ensures secure connections for industrial devices. Its compact DIN rail form factor allows organized and space-efficient installation in control cabinets. The power supply operates efficiently over an operating temperature range of -25°C to +65°C and can be safely stored from -40°C to +85°C, making it suitable for harsh industrial environments. Convection cooling ensures silent operation, while the three-phase input capability provides stable performance in high-power automation systems. Ideal for powering PLCs, sensors, relays, motors, and other critical control circuits, the DRP024V960W3BN guarantees reliable 960W DC output for industrial automation. IndMALL offers competitive pricing, fast quotations, and responsive support, providing superior value compared to other suppliers. Its industrial-grade design, robust construction, and energy efficiency make it an ideal solution for high-power DIN rail automation systems, ensuring reduced downtime, improved productivity, and long-term operational stability.
