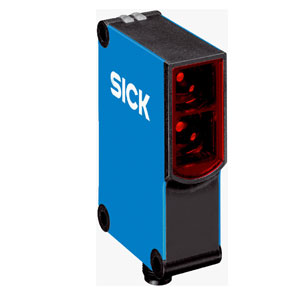

Sick WTB27-3R2641 Photoelectric Sensor
Sick Electrically Isolated Photoelectric Sensor WTB27-3R2641, 1027750 Technical Specifications:
| Brand | Sick |
| Product Type | Photoelectric Sensors |
| Product | WTB27-3R2641 |
Sick WTB27-3R2641 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Background suppression |
| Dimensions (W x H x D) | 24.6 mm x 80.6 mm x 54 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 30 mm ... 1,100 mm 1) |
| Sensing range | 100 mm ... 1,100 mm |
| Type of light | Visible red light |
| Light source | LED |
| Light spot size (distance) | Γ 15 mm (500 mm) |
| Wave length | 660 nm |
| Adjustment | Potentiometer |
| Supply voltage UB | 20 V AC/DC ... 250 V AC/DC 1) |
| Power consumption | β€ 2.5 VA |
| Switching Output | Relay, electrically isolated 2) |
| Output function | Change-over contacts |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via time delay selector switch |
| Switching current (switching voltage) | 4 A @ 250 V AC, 4 A @ 24 V DC, 0.125 A @ 250 V DC UL: 4 A @ 250 V AC, general use / 4 A @ 250 V AC, resistive (NO) / 3 A @ 250 V AC, resistive (NC) / 4 A @ 24 V DC, NO, general use / 3 A @ 24 V DC, NC, general use / R300 / B300 (NO contacts only) / 0 Β°C ... +60 Β°C |
| Response time | β€ 10 ms |
| Switching frequency | 10 Hz 3) |
| Connection type | Male connector Q6, 6-pin, AC/UC-coded |
| Protection class | II 6) |
| Housing material | Plastic, ABS |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP65 |
| Ambient operating temperature | β40 Β°C ... +60 Β°C 7) |
| Ambient temperature, storage | β40 Β°C ... +75 Β°C |
| Weight | 120 g |
Obtain a Quote for Sick WTB27-3R2641 Photoelectric Sensor part no: 1027750 at economical prices. Specifications Overview for WTB27-3R2641, 1027750 reveals Photoelectric proximity sensor, Background suppression, 24.6 mm x 80.6 mm x 54 mm dimensions, Rectangular housing design, 100 mm ... 1,100 mm sensing range, Visible red light , LED light source, Γ 15 mm (500 mm) light spot size, 660 nm wave length, 20 V AC/DC ... 250 V AC/DC supply voltage, β€ 2.5 VA consumption, Relay, electrically isolated output, Change-over contacts, Light/dark switching, β€ 10 ms response time, 10 Hz frequency, Male connector Q6, 6-pin, AC/UC-coded, IP65 Enclosure rating. Take the First Step with a Quote for your requirement of Sick Electrically Isolated Photoelectric Sensor. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
