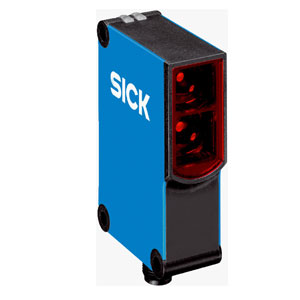

Sick WL27-3R2631 Photoelectric Sensor
The WL27-3R2631 from Sick is a high-performance Photoelectric Sensor designed for precise object detection in industrial automation setups.
| Brand | Sick |
| Product Type | Photoelectric Sensors |
| Product | WL27-3R2631 |
Sick WL27-3R2631 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Photoelectric retro-reflective sensor |
| Functional principle detail | Dual lens |
| Dimensions (W x H x D) | 24.6 mm x 80.6 mm x 54 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 0.1 m ... 15 m 1) |
| Sensing range | 0.1 m ... 11 m 1) |
| Type of light | Visible red light |
| Light source | LED |
| Light spot size (distance) | Ø 220 mm (10 m) |
| Wave length | 660 nm |
| Adjustment | Potentiometer |
| Supply voltage UB | 20 V AC/DC ... 250 V AC/DC 1) |
| Power consumption | ≤ 2.5 VA |
| Switching Output | Relay, electrically isolated 2) |
| Output function | Change-over contacts |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via time delay selector switch |
| Switching current (switching voltage) | 4 A @ 250 V AC, 4 A @ 24 V DC, 0.125 A @ 250 V DC UL: 4 A @ 250 V AC, general use / 4 A @ 250 V AC, resistive (NO) / 3 A @ 250 V AC, resistive (NC) / 4 A @ 24 V DC, NO, general use / 3 A @ 24 V DC, NC, general use / R300 / B300 (NO contacts only) / 0 °C ... +60 °C |
| Response time | ≤ 10 ms |
| Switching frequency | 10 Hz 3) |
| Connection type | Male connector Q6, 6-pin, AC/UC-coded |
| Protection class | II 6) |
| Housing material | Plastic, ABS |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP65 |
| Ambient operating temperature | –40 °C ... +60 °C 7) |
| Ambient temperature, storage | –40 °C ... +75 °C |
| Weight | 120 g |
The WL27-3R2631 Sick Photoelectric Proximity Sensor is a SICK retro-reflective photoelectric sensor for object detection in industrial automation. It provides a 0.1 m to 15 m sensing range, uses a visible red LED, supports a 20 V AC/DC to 250 V AC/DC supply, and provides an SPDT relay change-over output. The WL27-3R2631 belongs to the SICK W27 series and includes a dual-lens system, Q6 connector, potentiometer adjustment, and integrated timing functions.
The WL27-3R2631 Sick Photoelectric Proximity Sensor can be used on conveyors, packaging machinery, automated production equipment, and assembly systems. Its retro-reflective operating principle supports object detection across longer sensing distances, while the electrically isolated relay output provides switching for industrial control circuits. The adjustable potentiometer helps tune sensor operation, and integrated switch-on, switch-off, and adjustable time delays provide additional control when coordinating detection with automated machine sequences.
SICK WL27-3R2631, Part No. 1027776, combines long-range retro-reflective detection, relay switching, universal AC/DC supply, and a Q6 6-pin connection. Its ABS housing carries an IP65 rating and is specified for environments involving vibration, shock, and temperature variation. As a SICK W27 series photoelectric sensor, this model is suitable for conveyor, packaging, assembly, and general industrial automation applications requiring adjustable sensing and electrically isolated relay switching.
