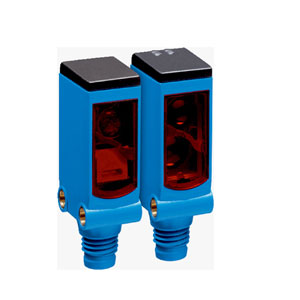

Sick WSE4S-3F2130 Photoelectric Sensor
The Sick WSE4S-3F2130 Photoelectric Sensor offers a Rectangular design, 650 nm sensing range, PinPoint LED light source, PNP output, and –40 °C ... +60 °C connection. Manufactured by Sick under the Sick Photoelectric Sensor category, this model belongs to the WL Series.
| Brand | Sick |
| Product Type | Photoelectric Sensor |
| Model Number | WSE4S-3F2130 |
Sick WSE4S-3F2130 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Through-beam photoelectric sensor |
| Functional principle detail | - |
| Sensing range max. | 1 m ... 5 m |
| Sensing range | 1 m ... 4.5 m |
| Light source | PinPoint LED |
| Type of light | Visible red light |
| Light spot size (distance) | Ø 50 mm (2 m) |
| Wave length | 650 nm |
| Adjustment | None |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | < 5 Vpp |
| Current consumption | 20 mA, 20 mA 3) |
| Protection class | III |
| Digital Output type | PNP |
| Switching mode | Dark switching |
| Output current Imax. | ≤ 100 mA |
| Response time | < 0.5 ms |
| Switching frequency | 1,000 Hz 6) |
| Housing | Rectangular |
| Design detail | Slim |
| Dimensions (W x H x D) | 12.2 mm x 41.8 mm x 17.3 mm |
| Connection | Connector M8, 3-pin |
| Housing material | Plastic, ABS |
| Front screen material | Plastic, PMMA |
| Enclosure rating | IP67, IP66 |
| Ambient operating temperature | –40 °C ... +60 °C |
| Ambient temperature, storage | –40 °C ... +75 °C |
| Weight | 40 g |
Get A Quote for Sick 4.5m Through beam Sensor WSE4S-3F2130 part no: 1052890 at the best price. Here are the brief Technical Specifications of WSE4S-3F2130, 1052890 are Through-beam photoelectric sensor, 1 m ... 4.5 m sensing range, PinPoint LED Light source, Visible red light, Ø 50 mm (2 m) Light spot size, 650 nm wave length, 10 V DC ... 30 V DC Supply voltage, < 5 Vpp , 20 mA, 20 mA , PNP output, Dark switching, ≤ 100 mA output current, < 0.5 ms , 1,000 Hz frequency, Rectangular housing, Slim design, 12.2 mm x 41.8 mm x 17.3 mm dimensions, Connector M8, 3-pin, Plastic, ABS, Plastic, PMMA, IP67, IP66 Enclosure rating. It's Time to get a Quote for your requirement of Sick 4.5m Through beam Sensor. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
