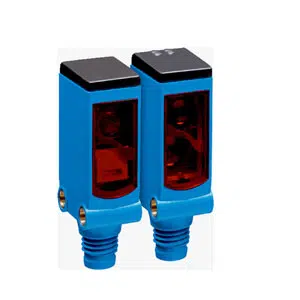

Sick Through Beam Photoelectric Sensor WSE4S-3E2130, 1052876 Technical Specifications:
Specification
Value
Functional principle
Through-beam photoelectric sensor
Functional principle detail
-
Sensing range max.
0 m ... 5 m
Sensing range
0 m ... 4.5 m
Light source
PinPoint LED
Type of light
Visible red light
Light spot size (distance)
Ø 50 mm (2 m)
Wave length
650 nm
Adjustment
None
Supply voltage UB
10 V DC ... 30 V DC
Ripple
< 5 Vpp
Current consumption
20 mA, 20 mA
Protection class
III
Digital Output type
NPN
Switching mode
Dark switching
Output current Imax.
≤ 100 mA
Response time
< 0.5 ms 5)
Switching frequency
1,000 Hz 6)
Housing
Rectangular
Design detail
Slim
Dimensions (W x H x D)
12.2 mm x 41.8 mm x 17.3 mm
Connection
Connector M8, 3-pin
Housing material
Plastic, ABS
Front screen material
Plastic, PMMA
Enclosure rating
IP67, IP66
Ambient operating temperature
–40 °C ... +60 °C
Ambient temperature, storage
–40 °C ... +75 °C
Weight
40 g
IndMALL Automation Dealing offers Sick Through Beam Photoelectric Sensor WSE4S-3E2130 part no: 1052876 at unbeatable prices. The Main Technical Parameters of WSE4S-3E2130, 1052876 feature Through-beam photoelectric sensor, 0 m ... 4.5 m sensing range, PinPoint LED Light source, Visible red light, Ø 50 mm (2 m) Light spot size, 650 nm wave length, 10 V DC ... 30 V DC Supply voltage, < 5 Vpp, 20 mA, 20 mA, NPN output, Dark switching, ≤ 100 mA output current, < 0.5 ms 5), 1,000 Hz 6) frequency, Rectangular housing, Slim design, 12.2 mm x 41.8 mm x 17.3 mm dimensions, Connector M8, 3-pin, Plastic, ABS, Plastic, PMMA, IP67, IP66 Enclosure rating. Take the First Step with a Quote for your requirement of Sick Through Beam Photoelectric Sensor. Choose us for unparalleled pricing and support over other Dealers & Distributors.
