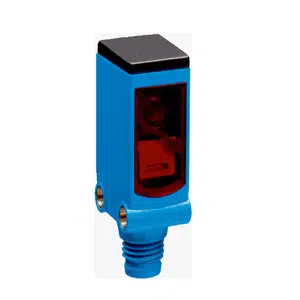

Sick PinPoint LED Photoelectric Sensor WL4S-3P2230, 1042066 Technical Specifications:
Specification
Value
Functional principle
Photoelectric retro-reflective sensor
Functional principle detail
Autocollimation
Sensing range max.
0 m ... 4 m 1)
Sensing range
0 m ... 2.5 m 1)
Light source
PinPoint LED 2)
Type of light
Visible red light
Light spot size (distance)
Ø 45 mm (1.5 m)
Wave length
650 nm
Adjustment
None
Supply voltage UB
10 V DC ... 30 V DC 1)
Ripple
< 5 Vpp 2)
Current consumption
20 mA 3)
Protection class
III
Digital Output type
PNP
Switching mode
Light/dark switching
Output current Imax.
≤ 100 mA
Response time
< 0.5 ms 4)
Switching frequency
1,000 Hz 5)
Housing
Rectangular
Design detail
Slim
Dimensions (W x H x D)
12.2 mm x 41.8 mm x 17.3 mm
Connection
Male connector M8, 4-pin
Housing material
Plastic, ABS
Front screen material
Plastic, PMMA
Enclosure rating
IP67, IP66
Ambient operating temperature
–40 °C ... +60 °C
Ambient temperature, storage
–40 °C ... +75 °C
Weight
30 g
Get A Quote for Sick PinPoint LED Photoelectric Sensor WL4S-3P2230 part no: 1042066 at the best price. Here are the brief Technical Specifications of WL4S-3P2230, 1042066 are Photoelectric retro-reflective sensor, Autocollimation, 0 m ... 2.5 m 1) sensing range, PinPoint LED 2) Light source, Visible red light, Ø 45 mm (1.5 m) Light spot size, 650 nm wave length, 10 V DC ... 30 V DC 1) Supply voltage, < 5 Vpp 2), 20 mA 3), PNP output, Light/dark switching, ≤ 100 mA output current, < 0.5 ms 4), 1,000 Hz 5), Rectangular housing, Slim design, 12.2 mm x 41.8 mm x 17.3 mm dimensions, Male connector M8, 4-pin, Plastic, ABS, Plastic, PMMA, IP67, IP66 Enclosure rating. It's Time to get a Quote for your requirement of Sick PinPoint LED Photoelectric Sensor. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
