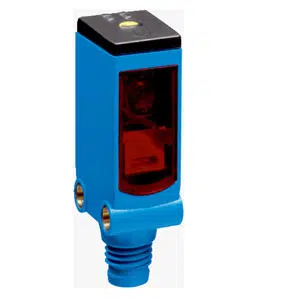

WL4S-3P2232: 1042078 - Sick 3m Photoelectric Sensor

Spec	Value
Sensing Range Max	0 m ... 5 m 1)
Sensing Range	0 m ... 3 m 1)
Light Source	PinPoint LED 2)
Connection	Male connector M8, 4-pin

Sick 3m Photoelectric Sensor WL4S-3P2232, 1042078 Technical Specifications:

Specification	Value
Functional principle	Photoelectric retro-reflective sensor
Functional principle detail	Autocollimation
Sensing range max.	0 m ... 5 m 1)
Sensing range	0 m ... 3 m 1)
Light source	PinPoint LED 2)
Type of light	Visible red light
Light spot size (distance)	Ø 45 mm (1.5 m)
Wave length	650 nm
Adjustment	Single teach-in button
Supply voltage UB	10 V DC ... 30 V DC 1)
Ripple	< 5 Vpp 2)
Current consumption	20 mA 3)
Protection class	III
Digital Output type	PNP
Switching mode	Light/dark switching
Output current Imax.	≤ 100 mA
Response time	< 0.5 ms 4)
Switching frequency	1,000 Hz 5)
Housing	Rectangular
Design detail	Slim
Dimensions (W x H x D)	12.2 mm x 41.8 mm x 17.3 mm
Connection	Male connector M8, 4-pin
Housing material	Plastic, ABS
Front screen material	Plastic, PMMA
Enclosure rating	IP67, IP66
Ambient operating temperature	–40 °C ... +60 °C
Ambient temperature, storage	–40 °C ... +75 °C
Weight	30 g

IndMALL Automation Dealing offers Sick 3m Photoelectric Sensor WL4S-3P2232 part no: 1042078 at unbeatable prices. The Main Technical Parameters of WL4S-3P2232, 1042078 feature Photoelectric retro-reflective sensor, Autocollimation, 0 m ... 3 m 1) sensing range, PinPoint LED 2) Light source, Visible red light, Ø 45 mm (1.5 m) Light spot size, 650 nm wave length, 10 V DC ... 30 V DC 1) Supply voltage, < 5 Vpp 2), 20 mA 3), PNP output, Light/dark switching, ≤ 100 mA output current, < 0.5 ms 4), 1,000 Hz 5), Rectangular housing, Slim design, 12.2 mm x 41.8 mm x 17.3 mm dimensions, Male connector M8, 4-pin, Plastic, ABS, Plastic, PMMA, IP67, IP66 Enclosure rating. Take the First Step with a Quote for your requirement of Sick 3m Photoelectric Sensor. Choose us for unparalleled pricing and support over other Dealers & Distributors.
