Sick RAY26P-24162930A00 Photoelectric Sensor

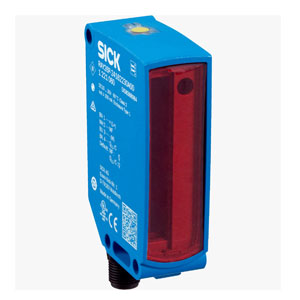

The Sick RAY26P-24162930A00 Photoelectric Sensor offers a Autocollimation, Reflex Array, Rectangular design, 0 m ... 4.5 m sensing range, PinPoint LED light source, Push-pull: PNP/NPN output, and Male connector M12, 4-pin connection. Manufactured by Sick under the Sick Photoelectric Sensor category, this model belongs to the RAY26 Reflex Array Series.
| Brand | Sick |
| Product Type | Photoelectric Sensor |
| Model Number | RAY26P-24162930A00 |
Sick RAY26P-24162930A00 Photoelectric Sensor โ Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Photoelectric retro-reflective sensor |
| Functional principle detail | Autocollimation, Reflex Array |
| Dimensions (W x H x D) | 24.6 mm x 82.5 mm x 53.3 mm |
| Housing design (light emission) | Rectangular |
| Minimum object size | 10 mm, position-independent detection within the light array |
| Detection height | 55 mm |
| Sensing range max. | 0 m ... 4.5 m |
| Distance of the sensor to reflector | โฅ 0 m |
| Conveyor belt suppression | Manual |
| Type of light | Visible red light |
| Light source | PinPoint LED |
| Light spot size (distance) | 55 mm x 9 mm (1 m) |
| Wave length | 635 nm |
| Adjustment | BluePilot: Teach-in, IO-Link |
| Pin 2 configuration | External Input (test), Teach-in, switching signal |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | < 5 Vpp |
| Current consumption | 25 mA, 40 mA 2) |
| Switching Output | Push-pull: PNP/NPN |
| Output: QL1 / C | Switching output or IO-Link mode |
| Output function | Factory setting: Pin 2 / white (MF): NPN normally closed (light switching), PNP normally open (dark switching), Pin 4 / black (QL1 / C): NPN normally open (dark switching), PNP normally closed (light switching), IO-Link |
| Switching mode | Light/dark switching |
| Switching mode selector | Via IO-Link |
| Signal voltage PNP HIGH/LOW | Approx. VS โ 2.5 V / 0 V |
| Signal voltage NPN HIGH/LOW | Approx. VS / < 2.5 V |
| Output current Imax. | โค 100 mA |
| Response time | โค 3 ms |
| Switching frequency | 170 Hz |
| Connection type | Male connector M12, 4-pin |
| Cable material | - |
| Protection class | III |
| Housing material | Plastic, VISTALยฎ |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP66, IP67 |
| Ambient operating temperature | โ40 ยฐC ... +60 ยฐC 11) 12) |
| Ambient temperature, storage | โ40 ยฐC ... +75 ยฐC |
| Weight | 80 g |
The RAY26P-24162930A00 from Sick is an advanced Photoelectric retro-reflective sensor built for demanding factory conditions. Leveraging Autocollimation and Reflex Array technology, it ensures precise detection of objects as small as 10 mm, regardless of position within the sensing field. The rectangular design (24.6 mm ร 82.5 mm ร 53.3 mm) makes installation compact and convenient. A 55 mm detection height and up to 4.5 m sensing range allow this sensor to perform exceptionally well on wide conveyors and pallet systems.
Powered by visible red light from a PinPoint LED, the sensor emits a focused 55 mm ร 9 mm light spot at 1 meter, helping maintenance teams quickly align the unit. Its BluePilot Teach-in function and IO-Link configuration enable easy setup and diagnostics, reducing downtime. The sensor operates with a wide input of 10โ30 V DC, handles โค 100 mA output current, and ensures swift object recognition with a โค 3 ms response time and 170 Hz switching frequency. Designed with rugged VISTALยฎ housing and sealed to IP66/IP67, it can withstand industrial dust, washdowns, and temperature fluctuations between โ40 ยฐC to +60 ยฐC.
