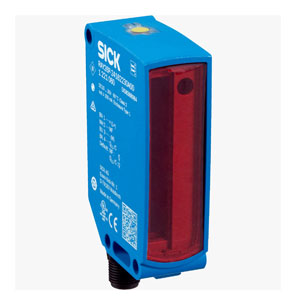

Sick RAY26P-24162530A00 Photoelectric Sensor
The RAY26P-24162530A00 Sick Reflex Array Photoelectric Sensor detects 5 mm objects across a 55 mm light array position-independently.
This SICK model belongs to the SICK Photoelectric Sensor range and SICK RAY26 Reflex Array series, providing 0 m to 3 m sensing.
RAY26P-24162530A00, Part No. 1221946, provides push-pull PNP/NPN output, 10 V DC to 30 V DC supply, 635 nm PinPoint LED, IO-Link, BluePilot, a 4-pin M12 connector, and IP66/IP67 protection.
| Brand | Sick |
| Product Type | Photoelectric Sensor |
| Model Number | RAY26P-24162530A00 |
Sick RAY26P-24162530A00 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Photoelectric retro-reflective sensor |
| Functional principle detail | Autocollimation, Reflex Array |
| Dimensions (W x H x D) | 24.6 mm x 82.5 mm x 53.3 mm |
| Housing design (light emission) | Rectangular |
| Minimum object size | 5 mm, position-independent detection within the light array |
| Detection height | 55 mm |
| Sensing range max. | 0 m ... 3 m |
| Distance of the sensor to reflector | ≥ 0 m |
| Conveyor belt suppression | Manual |
| Type of light | Visible red light |
| Light source | PinPoint LED |
| Light spot size (distance) | 55 mm x 9 mm (1 m) |
| Wave length | 635 nm |
| Adjustment | BluePilot: Teach-in, IO-Link |
| Pin 2 configuration | External Input (test), Teach-in, switching signal |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | < 5 Vpp |
| Current consumption | 25 mA, 40 mA 2) |
| Switching Output | Push-pull: PNP/NPN |
| Output: QL1 / C | Switching output or IO-Link mode |
| Output function | Factory setting: Pin 2 / white (MF): NPN normally closed (light switching), PNP normally open (dark switching), Pin 4 / black (QL1 / C): NPN normally open (dark switching), PNP normally closed (light switching), IO-Link |
| Switching mode | Light/dark switching |
| Switching mode selector | Via IO-Link |
| Signal voltage PNP HIGH/LOW | Approx. VS – 2.5 V / 0 V |
| Signal voltage NPN HIGH/LOW | Approx. VS / < 2.5 V |
| Output current Imax. | ≤ 100 mA |
| Response time | ≤ 3 ms |
| Switching frequency | 170 Hz |
| Connection type | Male connector M12, 4-pin |
| Cable material | - |
| Protection class | III |
| Housing material | Plastic, VISTAL® |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP66, IP67 |
| Ambient operating temperature | –40 °C ... +60 °C 11) 12) |
| Ambient temperature, storage | –40 °C ... +75 °C |
| Weight | 80 g |
The RAY26P-24162530A00 Sick Reflex Array Photoelectric Sensor is a SICK retro-reflective sensor for position-independent object detection in industrial automation. It provides a 0 m to 3 m sensing range, detects objects as small as 5 mm, uses a 55 mm detection height, and provides a push-pull PNP/NPN output. It belongs to the SICK RAY26 Reflex Array series and uses autocollimation optics, visible 635 nm PinPoint LED light, IO-Link communication, and BluePilot adjustment.
The RAY26P-24162530A00 Sick Reflex Array Photoelectric Sensor can be used on conveyors, packaging machines, automated production lines, and assembly systems. Its continuous light array supports position-independent detection of small, flat, uneven, or transparent objects within the optical path. Push-pull switching supports PNP and NPN operation, while IO-Link provides configuration, diagnostics, and data processing. BluePilot supports teach-in adjustment and optical alignment during sensor setup.
SICK RAY26P-24162530A00, Part No. 1221946, combines Reflex Array sensing, a 55 mm by 9 mm light spot at 1 metre, IO-Link, and a 4-pin M12 connection. It operates from 10 V DC to 30 V DC and carries IP66 and IP67 enclosure ratings. With dimensions of 24.6 mm × 82.5 mm × 53.3 mm, this SICK sensor is suited to conveyor, packaging, assembly, and industrial automation applications requiring position-independent object detection.
