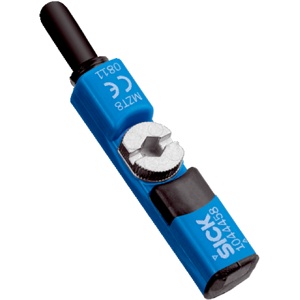

MZT8-2V8-N-KQ0: Sick MZT8 ATEX Sensors with IP67 Enclosure Rating
Technical specifications of Sick MZT8 ATEX Sensors with IP67 Enclosure Rating MZT8-2V8-N-KQ0 a980ol4$983i:
| Switching Output | NAMUR |
| Enclosure Rating | IP67 |
| Ambient Operating Temperature | –25 °C ... +80 °C |
| Electrical Wiring | DC 2-wire |
| Input Voltage Ui Max. | 20 V |
Sick MZT8 ATEX Sensors with IP67 Enclosure Rating MZT8-2V8-N-KQ0 Technical Specifications:
| Specification | Value |
|---|---|
| Cylinder Type | T-slot |
| Cylinder Types with Adapter | Profile cylinderTie rod cylinderRound body cylinderDovetail groove cylinderSMC rail CDQ2SMC rail ECDQ2 |
| Housing Length | 24 mm |
| Switching Output | NAMUR |
| Output Characteristic | Control current depending on switching state according to NAMUR EN 60947-5-6 |
| Switching Frequency | 1,000 Hz |
| Electrical Wiring | DC 2-wire |
| Enclosure Rating | IP67 |
| Ex Area Category | 1G, 1D |
| Device Labeling | II 1G Ex ia IIC T4 Ga, II 1D Ex ia IIIC T200135 °C Da |
| Response Sensitivity, Typ. | 2.8 mT |
| Overrun Distance, Typ. | 9 mm |
| Hysteresis, Typ. | ≤ 0.5 mT |
| Reproducibility | ≤ 0.1 mT |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Status Indicator LED | Yes |
| Power-Up Pulse Protection | Yes |
| Ambient Operating Temperature | –25 °C ... +80 °C |
| Shock and Vibration Resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| EMC | According to EN 60947-5-2 |
| Connection Type | Cable with connector M12, 2-pin, with knurled nuts, drag chain use, 0.3 m |
| Conductor Cross Section | 0.12 mm² |
| Cable Diameter | Ø 2.9 mm |
| Bending Radius | With fixed installation > 3 x cable diameter |
| Cable Outlet | Axial |
| MaterialHousingPlastic, PA12CablePVC | - |
| Cable (PVC) | PUR |
| Housing | Plastic, PA12 |
| Cable | PUR |
| Input Voltage Ui Max. | 20 V |
| Input Power Pi Max. | 100 mW |
| Input Current Ii Max. | 60 mA |
| Internal Capacitance Ci Max. | 130 nF |
| Internal Inductance Li Max. | 30 µH |
| Nominal Voltage | 8.2 V DC |
Ask for the Pricing of Sick MZT8 ATEX Sensors with IP67 Enclosure Rating MZT8-2V8-N-KQ0 at unbeatable prices. Detailed Specifications of MZT8-2V8-N-KQ0 features housing length of 24 mm and NAMUR switching output. The switching frequency is rated at 1,000 Hz, with a DC 2-wire electrical wiring system. The enclosure has an IP67 rating, providing robust protection in demanding environments. The sensor's connection type is a Cable with connector M12, 2-pin, with knurled nuts, drag chain use, 0.3 m with a 0.12 mm² conductor cross-section and a cable diameter of Ø 2.9 mm. It ensures flexibility with a With fixed installation > 3 x cable diameter. The housing is made from durable AI2 with a PUR cable. Input voltage (Ui) max is 20 V , input power (Pi) max is 100 mW , and input current (Ii) max is 60 mA . Internal inductance (Li) max is 30 µH , while the nominal voltage is 8.2 V DC. Now's the Time to Secure a Quote for your requirement of Sick MZT8 ATEX Sensors with IP67 Enclosure Rating. We're committed to offering more favorable pricing and more responsive support than other Traders.
