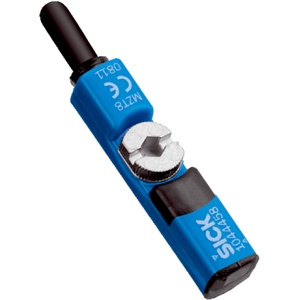

MZT8-03VPS-KRX: Sick MZT8 ATEX Sensors with NAMUR for Category 1D, 1G
Technical specifications of Sick MZT8 ATEX Sensors with NAMUR for Category 1D, 1G MZT8-03VPS-KRX osl55k270w)0t:
| Spec | Value |
|---|---|
| Switching Output | PNP |
| Enclosure Rating | IP67 |
| Ambient Operating Temperature | –20 °C ... +50 °C |
| Electrical Wiring | DC 3-wire |
| Input Voltage Ui Max. | 20 V |
Sick MZT8 ATEX Sensors with NAMUR for Category 1D, 1G MZT8-03VPS-KRX Technical Specifications:
| Specification | Value |
|---|---|
| Cylinder Type | T-slot |
| Cylinder Types with Adapter | Profile cylinderTie rod cylinderRound body cylinderDovetail groove cylinderSMC rail CDQ2SMC rail ECDQ2 |
| Housing Length | 24 mm |
| Switching Output | PNP |
| Output Characteristic | Control current depending on switching state according to NAMUR EN 60947-5-6 |
| Switching Frequency | 1,000 Hz |
| Electrical Wiring | DC 3-wire |
| Enclosure Rating | IP67 |
| Ex Area Category | 3G, 3D |
| Device Labeling | II 3G Ex nA IIC T4 Gc X, II 3D Ex tc IIIC T135 °C Dc X |
| Response Sensitivity, Typ. | 2.6 mT |
| Overrun Distance, Typ. | 3 mm |
| Hysteresis, Typ. | 0.7 mT |
| Reproducibility | ≤ 0.1 mT |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Status Indicator LED | Yes |
| Power-Up Pulse Protection | Yes |
| Ambient Operating Temperature | –20 °C ... +50 °C |
| Shock and Vibration Resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| EMC | According to EN 60947-5-2 |
| Connection Type | Cable with connector M8, 3-pin, with knurled nuts, drag chain use, 0.3 m |
| Conductor Cross Section | 0.14 mm² |
| Cable Diameter | Ø 2.9 mm |
| Bending Radius | With fixed installation > 3 x cable diameter |
| Cable Outlet | Axial |
| MaterialHousingPlastic, PA12CablePVC | Material |
| Cable (PVC) | PUR |
| Housing | Plastic, PA12 |
| Cable | PUR |
| Input Voltage Ui Max. | 20 V |
| Input Power Pi Max. | 100 mW |
| Input Current Ii Max. | 60 mA |
| Internal Capacitance Ci Max. | 130 nF |
| Internal Inductance Li Max. | 30 µH |
| Nominal Voltage | 8.2 V DC |
Call us for Sick MZT8 ATEX Sensors with NAMUR for Category 1D, 1G MZT8-03VPS-KRX at the best rates. Technical Attributes of MZT8-03VPS-KRX are housing length of 24 mm and PNP switching output. The switching frequency is rated at 1,000 Hz, with a DC 3-wire electrical wiring system. The enclosure has an IP67 rating, providing robust protection in demanding environments. The sensor's connection type is a Cable with connector M8, 3-pin, with knurled nuts, drag chain use, 0.3 m with a 0.14 mm² conductor cross-section and a cable diameter of Ø 2.9 mm. It ensures flexibility with a With fixed installation > 3 x cable diameter. The housing is made from durable AI2 with a PUR cable. Input voltage (Ui) max is 20 V , input power (Pi) max is 100 mW , and input current (Ii) max is 60 mA . Internal inductance (Li) max is 30 µH , while the nominal voltage is 8.2 V DC. Unlock Exclusive Pricing with a Quote for your requirement of Sick MZT8 ATEX Sensors with NAMUR for Category 1D, 1G. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
