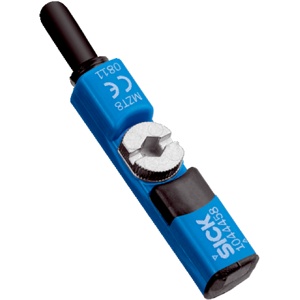

MZT8-2V8-N-KP0: MZT8 ATEX Sensors for Gas and Dust Explosion Zones

Technical specifications of MZT8 ATEX Sensors for Gas and Dust Explosion Zones MZT8-2V8-N-KP0 by22ji578t*17:

SpecValue
Switching OutputNAMUR
Enclosure RatingIP67
Ambient Operating Temperature–25 °C ... +80 °C
Electrical WiringDC 2-wire
Input Voltage Ui Max.-

MZT8 ATEX Sensors for Gas and Dust Explosion Zones MZT8-2V8-N-KP0 Technical Specifications:

SpecificationValue
Cylinder TypeT-slot
Cylinder Types with AdapterProfile cylinderTie rod cylinderRound body cylinderDovetail groove cylinderSMC rail CDQ2SMC rail ECDQ2
Housing Length24 mm
Switching OutputNAMUR
Output Characteristic-
Switching Frequency1,000 Hz
Electrical WiringDC 2-wire
Enclosure RatingIP67
Ex Area Category1G, 1D
Device LabelingII 1G Ex ia IIC T4 Ga, II 1D Ex ia IIIC T200135 °C Da
Response Sensitivity, Typ.2.8 mT
Overrun Distance, Typ.9 mm
Hysteresis, Typ.≤ 0.5 mT
Reproducibility≤ 0.1 mT
Reverse Polarity ProtectionYes
Short-Circuit ProtectionYes
Status Indicator LEDYes
Power-Up Pulse ProtectionYes
Ambient Operating Temperature–25 °C ... +80 °C
Shock and Vibration Resistance30 g, 11 ms / 10 ... 55 Hz, 1 mm
EMCAccording to EN 60947-5-2
Connection TypeCable with connector M8, 2-pin, drag chain use, 0.3 m
Conductor Cross Section0.12 mm²
Cable DiameterØ 2.9 mm
Bending RadiusWith fixed installation > 3 x cable diameter
Cable OutletAxial
MaterialHousingPlastic, PA12CablePVC-
Cable (PVC)PUR
HousingPlastic, PA12
CablePUR
Input Voltage Ui Max.-
Input Power Pi Max.-
Input Current Ii Max.-
Internal Capacitance Ci Max.-
Internal Inductance Li Max.-
Nominal Voltage-
Obtain a Quote for MZT8 ATEX Sensors for Gas and Dust Explosion Zones MZT8-2V8-N-KP0 at economical prices. Specifications Overview for MZT8-2V8-N-KP0 reveals housing length of 24 mm and NAMUR switching output. The switching frequency is rated at 1,000 Hz, with a DC 2-wire electrical wiring system. The enclosure has an IP67 rating, providing robust protection in demanding environments. The sensor's connection type is a Cable with connector M8, 2-pin, drag chain use, 0.3 m with a 0.12 mm² conductor cross-section and a cable diameter of Ø 2.9 mm. It ensures flexibility with a With fixed installation > 3 x cable diameter. The housing is made from durable AI2 with a PUR cable. Take the First Step with a Quote for your requirement of MZT8 ATEX Sensors for Gas and Dust Explosion Zones. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
