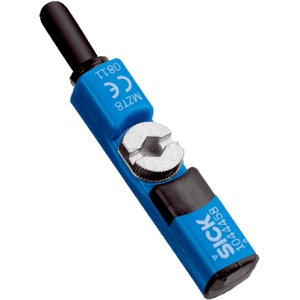

MZT8-2V6PSAKUB: Sick MZT8 VIA Cylinder Sensors for T-Slot Cylinders
Technical Specifications of Sick MZT8 VIA Cylinder Sensors for T-Slot Cylinders MZT8-2V6PSAKUB:
| Housing Length | 24 mm |
| Switching Output | PNP |
| Output Function | NO |
| Connection Type | Cable, 3-wire, drag chain use, 5 m |
Sick MZT8 VIA Cylinder Sensors for T-Slot Cylinders MZT8-2V6PSAKUB Technical Specifications:
| Specification | Value |
|---|---|
| Cylinder type | T-slot |
| Cylinder types with adapter | Profile cylinderTie rod cylinderRound body cylinderDovetail groove cylinderSMC rail CDQ2SMC rail ECDQ2 |
| Housing length | 24 mm |
| Switching output | PNP |
| Switching frequency | 1,000 Hz |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP68 IP69K |
| IO-Link | NC or NOSwitch-on or switch-off delay (up to 1.6 seconds) |
| Special features | Visual installation aid/LED indicator (yellow)Power LED (green)Interior housing temperature (via IO-Link)Counter function (via IO-Link) |
| Supply voltage | 10 V DC ... 30 V DC |
| Power consumption | 10 mA, without load |
| Voltage drop | ≤ 2.2 V |
| Continuous current Ia | ≤ 200 mA |
| Protection class | III |
| Response sensitivity, typ. | 2.6 mT |
| Overrun distance, typ. | 3 mm |
| Hysteresis, typ. | 0.7 mT |
| Reproducibility | ≤ 0.1 mT |
| Ambient operating temperature | –30 °C ... +80 °C |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| Connection type | Cable, 3-wire, drag chain use, 5 m |
| Conductor cross section | 0.14 mm² |
| Cable diameter | Ø 2.9 mm |
| Bending radius | With fixed installation > 3 x cable diameter |
| Torsion force | ± 180° / 1 m |
| Drag chain parameters | Traversing speed max. 3.3 m/s at 5 m horizontal traversing length |
| Cable outlet | Axial |
| Housing | Plastic, PA12 |
| Cable | PUR |
| Communication interface | IO-Link V1.0 |
IndMALL Automation Dealing offers Sick MZT8 VIA Cylinder Sensors for T-Slot Cylinders MZT8-2V6PSAKUB at unbeatable prices. The Main Technical Parameters of MZT8-2V6PSAKUB are housing length of 24 mm, featuring PNP switching output and a high switching frequency of 1,000 Hz. The sensor is designed with NO output function and operates with DC 3-wire electrical wiring. Rated IP68 IP69K , it is built to withstand tough environments. The supply voltage range is 10 V DC ... 30 V DC, with power consumption of 10 mA, without load. The voltage drop is ≤ 2.2 V, and the continuous current (Ia) is ≤ 200 mA. The overrun distance is 3 mm, and the connection type is a Cable, 3-wire, drag chain use, 5 m, offering a conductor cross-section of 0.14 mm² and a cable diameter of Ø 2.9 mm. The housing is made from robust Plastic, PA12, and the cable is PUR . This sensor also supports IO-Link V1.0 communication. Take the First Step with a Quote for your requirement of Sick MZT8 VIA Cylinder Sensors for T-Slot Cylinders. Choose us for unparalleled pricing and support over other Dealers & Distributors.
