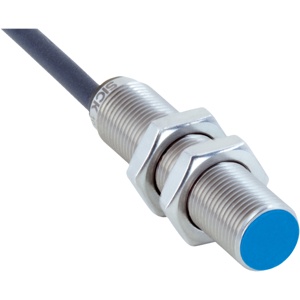

Home Sick Proximity Sensor IMX12-09BNSZU2S Sick IMX12-09BNSZU2S Proximity Sensor The Sick IMX12-09BNSZU2S Proximity Sensor offers a Metric; Standard design , 9 mm sensing range, Quasi-flush installation type, NPN NO output, and Cable, 3-wire, 2 m connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IMX Series.
Brand Sick Product Type Proximity Sensor Model Number IMX12-09BNSZU2S
Sick IMX12-09BNSZU2S Proximity Sensor – Technical Specifications Specification Value Housing Metric; Standard design Thread size M12 x 1 Diameter Ø 12 mm Sensing range Sn 9 mm Safe sensing range Sa 7.29 mm Installation type Quasi-flush Switching frequency 25 Hz Connection type Cable, 3-wire, 2 m Switching output NPN Output function NO Electrical wiring DC 3-wire Supply voltage 10 V DC ... 30 V DC Enclosure rating IP68 1) Ripple ≤ 10 % Voltage drop ≤ 2 V 1) Time delay before availability ≤ 150 ms Hysteresis 5 % ... 15 % Reproducibility ≤ 5 % 2) 3) Temperature drift (of Sr) ± 10 % Continuous current Ia ≤ 200 mA No load current ≤ 50 mA Ambient operating temperature –25 °C ... +75 °C Housing material Nickel-plated brass Sensing face material Plastic, LCP Housing length 58.1 mm Thread length 54.1 mm Tightening torque, max. ≤ 12 Nm Protection class III Cable material PUR Conductor size 0.34 mm² Cable diameter Ø 4.5 mm
