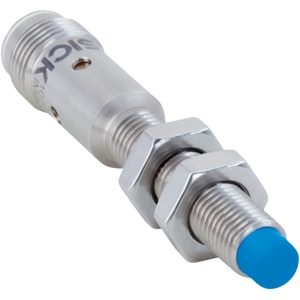

Home Sick Proximity Sensor IMX08-08NPSZC0S Sick IMX08-08NPSZC0S Proximity Sensor The Sick IMX08-08NPSZC0S Proximity Sensor offers a Metric; Standard design , 8 mm sensing range, Non-flush installation type, PNP NO output, and Male connector M12, 4-pin connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IMX Series.
Brand Sick Product Type Proximity Sensor Model Number IMX08-08NPSZC0S
Sick IMX08-08NPSZC0S Proximity Sensor β Technical Specifications Specification Value Housing Metric; Standard design Thread size M8 x 1 Diameter Γ 8 mm Sensing range Sn 8 mm Safe sensing range Sa 6.48 mm Installation type Non-flush Switching frequency 25 Hz Connection type Male connector M12, 4-pin Switching output PNP Output function NO Electrical wiring DC 3-wire Supply voltage 10 V DC ... 30 V DC Enclosure rating IP68 1) Ripple β€ 10 % Voltage drop β€ 2 V 1) Time delay before availability β€ 150 ms Hysteresis 5 % ... 15 % Reproducibility β€ 5 % 2) 3) Temperature drift (of Sr) Β± 10 % Continuous current Ia β€ 200 mA No load current β€ 50 mA Ambient operating temperature β25 Β°C ... +75 Β°C Housing material Nickel-plated brass Sensing face material Plastic, LCP Housing length 67 mm Thread length 28.2 mm Tightening torque, max. β€ 4 Nm Protection class III Cable material PUR Conductor size 0.34 mmΒ² Cable diameter Γ 4.5 mm
