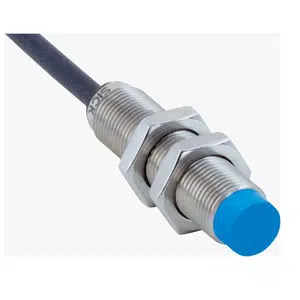

IMS12-08NNONU2S: 1103208 - Sick M12 56 mm Inductive Sensor
The Sick IMS12-08NNONU2S Proximity Sensor provides 8 mm sensing range, M12 cylindrical housing, NPN NC output, and 2000 Hz switching frequency. This Sick M12 56 mm Inductive Sensor supports non-flush installation, DC 3-wire wiring, 2 m cable connection, and IP68/IP69K enclosure for harsh conditions under the Sick brand. It is listed within Sick Proximity Sensors and classified in the IM18 series.
| Brand | Sick |
| Product Type | Proximity Sensor |
| Product | IMS12-08NNONU2S |
Sick M12 56 mm Inductive Sensor IMS12-08NNONU2S, 1103208 Technical Specifications:
| Specification | Value |
|---|---|
| Housing | Cylindrical thread design, Standard design |
| Thread size | M12 x 1 |
| Diameter | Γ 12 mm |
| Sensing range Sn | 8 mm |
| Safe sensing range Sa | 6.48 mm |
| Installation type | Non-flush |
| Switching frequency | 2,000 Hz |
| Connection type | 2 m Cable |
| Switching output | NPN |
| Output function | NC |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP68 1) , IP69K 2) |
| Special features | Resistant to cleaning agents, Temperature resistance |
| Special applications | Mobile machines, Hygienic and washdown zones, Difficult application conditions |
| Items supplied | Mounting nut, brass, nickel-plated (2x) |
Get A Quote for Sick M12 56 mm Inductive Sensor IMS12-08NNONU2S part no: 1103208 at unbeatable prices. Detailed Specifications of IMS12-08NNONU2S, 1103208 feature Cylindrical thread design, Standard design housing, M12 x 1 thread size, Γ 12 mm diameter, 8 mm sensing range, 6.48 mm safe sensing range, Non-flush Installation, 2,000 Hz frequency, 2 m Cable, NC output, DC 3-wire . Match Your Needs with a Quote for your requirement of Sick M12 56 mm Inductive Sensor. Our pricing and support are unrivaled, especially when compared to other Distributors.
