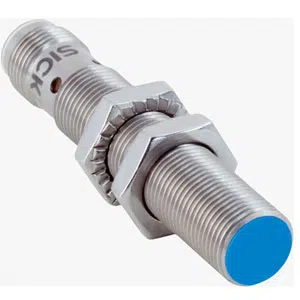

IMB12-04BPPVC0S: 1074359 - Sick 4-wire PNP Proximity Sensor
Technical Specifications of Sick 4-wire PNP Proximity Sensor IMB12-04BPPVC0S 1074359:
| Spec | Value |
|---|---|
| Housing | Cylindrical thread design, Standard design |
| Thread size | M12 x 1 |
| Diameter | Ø 12 mm |
| Sensing range Sn | 4 mm |
| Installation type | Flush |
Sick 4-wire PNP Proximity Sensor IMB12-04BPPVC0S, 1074359 Technical Specifications:
| Specification | Value |
|---|---|
| Housing | Cylindrical thread design, Standard design |
| Thread size | M12 x 1 |
| Diameter | Ø 12 mm |
| Sensing range Sn | 4 mm |
| Safe sensing range Sa | 3.24 mm |
| Installation type | Flush |
| Switching frequency | 2,000 Hz |
| Connection type | Male connector M12, 4-pin 1) |
| Switching output | PNP |
| Output function | Complementary |
| Electrical wiring | DC 4-wire |
| Enclosure rating | IP68 2), IP69K 3) |
| Special features | Resistant against coolant lubricants, Visual adjustment indicator, IO-Link, Temperature resistance |
| Special applications | Zones with coolants and lubricants, Mobile machines, Difficult application conditions |
| Items supplied | Mounting nut, V2A stainless steel, with locking teeth (2x) |
IndMALL Offers Sick 4-wire PNP Proximity Sensor IMB12-04BPPVC0S part no: 1074359 at economical Choices. Product Tech Specs of IMB12-04BPPVC0S, 1074359 includeCylindrical thread design, Standard design housing, M12 x 1 thread size, Ø 12 mm diameter, 4 mm sensing range, Flush Installation, 2,000 Hz frequency, Male connector M12, 4-pin 1), Connection type, PNP, Switching output, Complementary output, DC 4-wire ,Electrical wiring. Now's the Time to Secure a Quote for your requirement of Sick 4-wire PNP Proximity Sensor. Trust in our superior pricing and more dedicated support over other Distributors.
