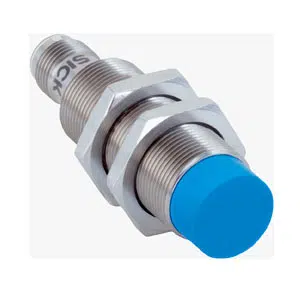

IMS18-08BNONU2S: 1103214 - Sick M18 NPN NC Inductive Sensor
The Sick IMS18-08BNONU2S Proximity Sensor provides 8 mm sensing range, NPN NC output, quasi-flush mounting, and 1000 Hz frequency. This Sick M18 NPN NC Inductive Sensor includes M18 cylindrical housing, DC 3-wire wiring, and IP68/IP69K enclosure, supplied with brass nickel-plated mounting nuts under the Sick brand, listed in Sick Proximity Sensors and classified within the IM18 series.
| Brand | Sick |
| Product Type | Proximity Sensor |
| Product | IMS18-08BNONU2S |
Sick M18 NPN NC Inductive Sensor IMS18-08BNONU2S, 1103214 Technical Specifications:
| Specification | Value |
|---|---|
| Housing | Cylindrical thread design, Standard design |
| Thread size | M18 x 1 |
| Diameter | Γ 18 mm |
| Sensing range Sn | 8 mm |
| Safe sensing range Sa | 6.48 mm |
| Installation type | Quasi-flush 1) |
| Switching frequency | 1,000 Hz |
| Connection type | 2 m Cable |
| Switching output | NPN |
| Output function | NC |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP68 2), IP69K 3) |
| Special features | Resistant to cleaning agents, Temperature resistance |
| Special applications | Mobile machines, Hygienic and washdown zones, Difficult application conditions |
| Items supplied | Mounting nut, brass, nickel-plated (2x) |
Talk to Our Engineer for Sick M18 NPN NC Inductive Sensor IMS18-08BNONU2S part no: 1103214 with special pricing. Detailed Specifications of IMS18-08BNONU2S, 1103214 include Cylindrical thread design, Standard design housing, M18 x 1 thread size, Γ 18 mm diameter, 8 mm sensing range, 6.48 mm safe sensing range, Quasi-flush Installation, 1,000 Hz frequency, 2 m Cable, NC output, DC 3-wire . Take the First Step with a Quote for your requirement of Sick M18 NPN NC Inductive Sensor. Our commitment to better pricing and exceptional support sets us apart from other Dealers & Distributors.
