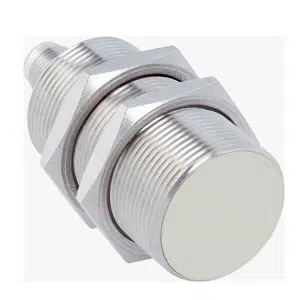

IMF30-15BPPNC0S: 1076656 - Sick PNP DC 4-wire Inductive Sensor
Technical Specifications of Sick PNP DC 4-wire Inductive Sensor IMF30-15BPPNC0S 1076656:
| Housing | Cylindrical thread design, Standard design |
| Thread size | M30 x 1.5 |
| Diameter | Γ 30 mm |
| Sensing range Sn | 15 mm |
| Installation type | Flush |
Sick PNP DC 4-wire Inductive Sensor IMF30-15BPPNC0S, 1076656 Technical Specifications:
| Specification | Value |
|---|---|
| Housing | Cylindrical thread design, Standard design |
| Thread size | M30 x 1.5 |
| Diameter | Γ 30 mm |
| Sensing range Sn | 15 mm |
| Safe sensing range Sa | 12.15 mm |
| Installation type | Flush |
| Switching frequency | 500 Hz |
| Connection type | Male connector M12, 4-pin 1) |
| Switching output | PNP |
| Output function | Complementary |
| Electrical wiring | DC 4-wire |
| Enclosure rating | IP68 2), IP69K 3) |
| Special features | Resistant to cleaning agents, IO-Link, Temperature resistance |
| Special applications | Hygienic and washdown zones, Difficult application conditions |
| Items supplied | Mounting nut, V4A stainless steel (2x) |
Obtain a Quote for Sick PNP DC 4-wire Inductive Sensor IMF30-15BPPNC0S part no: 1076656 at economical prices. Specifications Overview for IMF30-15BPPNC0S, 1076656 reveals Cylindrical thread design, Standard design housing, M30 x 1.5 thread size, Γ 30 mm diameter, 15 mm sensing range, Flush Installation, 500 Hz frequency, Male connector M12, 4-pin 1), Connection type, PNP, Switching output, Complementary output, DC 4-wire ,Electrical wiring. Take the First Step with a Quote for your requirement of Sick PNP DC 4-wire Inductive Sensor. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
